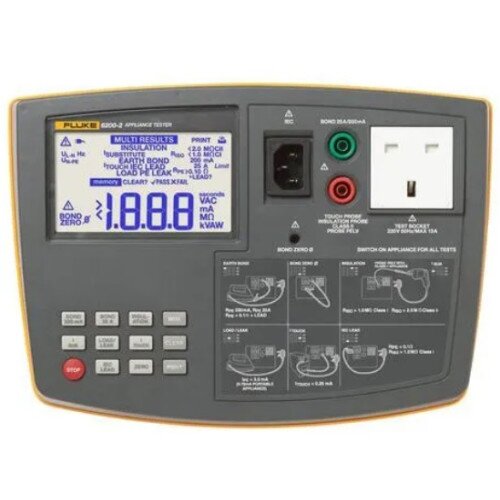

Fluke Networks 6200-2 Portable Appliance Testers
Fluke Networks 6200-2 Portable Appliance Testers Display Gallery Item 1
Fluke Networks 6200-2 Portable Appliance Testers - 2 Display Gallery Item 2

Fluke Networks 6200-2 Portable Appliance Testers Price in Pakistan

By: Fluke Networks

Model: Fluke 6200-2

Sku: 9GNKT7VME1

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Test : The accuracy specification for the display range is defined as ±(%reading + digit counts) at 23 °C ±5 °C, ≤75% RH.
  • Between 0 °C and 18 °C and between 28 °C and 40 °C, accuracy specifications may degrade by 0.1 x (accuracy specification) per °C.
  • The measurement range meets the service operating errors specified in EN61557-1: 1997, EN61557-2: 1997, EN61557-4: 1997, EN61557-6: 1997, DIN VDE0404-2.
  • Power-on Test: The test indicates reversed L-N, missing PE, and measures the mains voltage and frequency.
  • Display Range: 90 V to 264 V
  • Accuracy at 50 Hz: ±(2% + 3 counts)
  • Resolution: 1 V
  • Input Impedance: ) 1 MΩ // 2.2 nF
  • Maximum Input Mains Voltage: 264 V
  • Earth Bond Test (R pe):
  • Display Range: 0 to 19.99 Ω
  • Accuracy (after bond test zeroing): ±(2.5% + 4 counts)
  • Resolution: 0.01 Ω
  • Test Current: 200 mA AC -0% +40% into 1.99 Ω
  • 25 A AC ±20% into 25 mΩ at 230 V
  • Open Circuit Voltage: ) 4 V AC, ( 24 V AC
  • Bond Test Zeroing: Can subtract up to 1.99 Ω
  • Insulation Test (R iso):
  • Display Range: 0 to 299 MΩ
  • Accuracy: ±(5% + 2 counts) from 0.1 to 300 MΩ
  • Resolution: 0.01 MΩ (0 to 19.99 MΩ), 0.1 MΩ (20 to 199.9 MΩ), 1 MΩ (200 to 299 MΩ)
  • Test Voltage: 500 V DC -0% +10% at 500 kΩ load
  • Test Current: ) 1 mA at 500 kΩ load, ( 15 mA at 0 Ω
  • Auto Discharge Time: ( 0.5 s for 1 μF
  • Max Capacitive Load: Operational up to 1 μF
  • Touch Current Test:
  • Display Range: 0 to 1.99 mA AC
  • Accuracy: ±(4% + 2 counts)
  • Resolution: 0.01 mA
  • Internal Resistance (via probe): 2 kΩ
  • Measuring Method: Probe*
  • Substitute Leakage Current Test:
  • Display Range: 0 to 19.99 mA AC
  • Accuracy: ±(2.5% + 3 counts)
  • Resolution: 0.01 mA
  • Test Voltage: 100 V AC ±20%
  • Load/Leakage Test: Load Current:
  • Display Range: 0 A to 13 A
  • Accuracy: ±(4% + 2 counts)
  • Resolution: 0.1 A*
  • Load/Leakage Test: Load Power:
  • Display Range (230 V Mains): 0.0 VA to 3.2 kVA
  • Accuracy: ±(5% + 3 counts)
  • Resolution: 1 VA (0 to 999 VA), 0.1 kVA ()1.0 kVA)*
  • Load/Leakage Test: Leakage Current:
  • Display Range: 0 to 19.99 mA
  • Accuracy: ±(4% + 4 counts)
  • Resolution: 0.01 mA*
  • PELV Test:
  • Accuracy at 50 Hz: ±(2% + 3 counts)
  • Overload Protection: 300 V rms
  • Warning Threshold: 25 V rms
  • The appliance under test is energized at mains potential.
  • Environmental :
  • Operating Temperature: 0 to 40 °C
  • Relative Humidity: Non-condensing (10 °C, 95% from 10 to 30 °C, 75% from 30 to 40 °C
  • Safety :
  • Safety Rating: Complies with EN61010-1 3rd edition, CAT II, 300 V, pol 2
  • Power Supply: 230 V +10% -15%, 50 Hz ±2
  • Power Consumption (Tester): 13 W typical (idle), 60 W max. during 25A Bond test
  • Storage Temperature: -10 to 60 °C
  • Corrosion: 70 °C @ 95% RH for 5 days max.
  • Operating Altitude: 0 up to 2000 m
  • Sealing: IP-40 (enclosure), IP-20 (connectors)
  • EMC: Complies with EN61326-1, portable
  • EMI Immunity: 3 V/m
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • Dedicated key for each test for ‘one-touch’ testing
  • Complies with the new standards BS EN 50678 and BS EN 50699
  • Pre-set pass/fail levels to save time
  • Large backlit display for easy reading
  • Single mains socket for appliance connection
  • Separate IEC socket for easy mains/extension lead testing
  • Detachable test leads for quick field replacement
  • Integral carrying handle
  • USB port for data transfer

Perform More Tests Each Day

The Fluke 6200-2 PAT tester is a low weight, small size, one-touch solution with redesigned auto-test capabilities to help you increase the number of portable appliance tests completed each day. The 6200-2 is designed to enable you to work faster without compromising safety – yours or your customer’s.

One-Touch Solution…

Pre-set test routines are initiated from a single button. This not only simplifies testing but also facilitates a faster, more efficient way of working.

Small Size…

This portable appliance testers is also extremely compact, and has Fluke’s traditional ruggedness to be able to withstand working in the field. Packed with all the features you need for testing portable appliances, a Fluke PAT tester is a complete all-in-one solution.

In the Box

  • Fluke Networks 6200-2 Portable Appliance Testers
