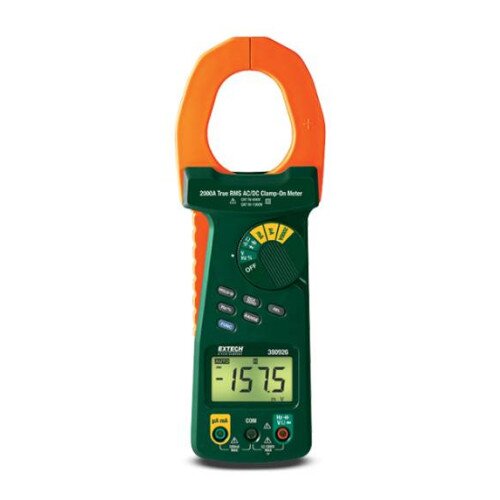

FLIR Extech 380926 2000A True RMS AC/DC Clamp Meter
FLIR Extech 380926 2000A True RMS AC/DC Clamp Meter Display Gallery Item 1

FLIR Extech 380926 2000A True RMS AC/DC Clamp Meter Price in Pakistan

By: FLIR

Model: 380926

Sku: SR5NM15R9N

Be the first to review this product

Sign up for price alert

PKR 132,099

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • AC Current: Clamp: 400A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA
  • AC Current Basic Accuracy: ±(2% of reading + 5 digits)
  • AC Current Max Resolution: Clamp: 0.1A; DMM: 0.1µA
  • AC Voltage: 4V, 40V, 400V, 1000V
  • AC Voltage Basic Accuracy: ±(1.2% of reading + 5 digits)
  • AC Voltage Max Resolution: 1mV
  • Capacitance: 50nF, 500nF, 5.0µF, 50µF
  • Capacitance: Max Resolution 10pF
  • Continuity: Yes
  • DC Current: Clamp: 400.0A, 2000A; DMM: 400µA, 4000µA, 40mA, 400mA
  • DC Current Basic Accuracy: ±(2% of reading + 5 digits)
  • DC Current Max Resolution: Clamp: 0.1A; DMM: 0.1µA
  • DC Voltage: 400mV, 4.0V, 40V, 400V, 1000V
  • DC Voltage Basic Accuracy: ±(1% of reading + 2 digits)
  • DC Voltage Max Resolution: 0.1mV
  • Diode Test: Yes
  • Duty Cycle: 1% to 99%
  • Duty Cycle Basic Accuracy: ±(1% of reading + 5 digits)
  • Duty Cycle Max Resolution: 0.1%
  • Frequency: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz
  • Frequency Basic Accuracy: ±(1% of reading + 5 digits)
  • Frequency Max Resolution: 0.001Hz
  • Jaw Size: 2" (50mm), conductors up to 750MCM
  • Resistance: 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
  • Resistance Max Resolution: 0.1Ω
  • True RMS: Yes
  • Display: 5000-count segment LCD with backlighting
  • Power: 1 × 9V (1.5) battery
  • Safety Category: CAT IV-600V
Quantity:
  • Add to Wishlist
  • Add to Compare

The Extech 380926 is a category IV, 2000-Amp, TRMS AC/DC clamp meter with a rugged 2 in. jaw to accommodate two 500 MCM cables. A built-in full-function DMM can measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.

In the Box

  • FLIR Extech 380926 2000A True Rms AC/DC Clamp Meter
