Choose from Ubuntu Core 16.0 and Microsoft Windows 10 IoT Enterprise LTSB – for easy management of your IoT platforms.
The compact gateway supports video and audio with DisplayPort 1.1, and even enables light edge analytics in periods of lost connectivity. The 3003 model is embedded inside countless endpoints with multiple sensors within the following use cases.
DisplayPort 1.1 with up to 2560x1600@ 60Hz is perfect for both kiosks and digital signage. Whether it’s outdoors, under cabinets or in the middle of busy restaurant, the 3003 stands up to harsh environments with ease.
Experience an uninterrupted work flow with Intel Atom E3815, 2GB RAM, and 8GB eMMC (32GB w/WWAN).
Integrated GPS, accelerometer and atmospheric pressure sensors enable efficient mobile use cases and geo-referenced asset management.
Connect via Ethernet (10/100), WWAN/Cellular, WLAN/Bluetooth LE/Wi-Fi, dual Ethernet and benefit from intuitive mesh networking.
Each machine has a small footprint, comes optimized for wall standard and DIN-rail mounting and cable routing. The perfect fit for tight kiosk spaces.
The gateway helps bridge existing and new protocols to make your applications run smoothly in the edge, fog, or cloud. Dell's growing IoT solution partners continue to provide the right ecosystem no matter what IoT tasks you're trying to perform.
The Edge Gateway 3003, together with analytics software from our partners, performs computing in the edge, in the fog and integrates with computing in the cloud or data center.
Thanks to optional EDM software, you can easily add remote device management for device-level security.
With an operating range of -30°C to 70°C, flexible mounting options, and the ability to withstand high/low temperatures and high shock and vibration, you can work without worry.
Work with other gateways in a tiered architecture to enable distributed computing in today’s harsh manufacturing, transportation and edge of network environments.
Embedded inside countless types of endpoints with multiple sensors, the 3003 gateway is ideal for digital signage, kiosks, ticket machines and more. Enabling light edge analytics even in periods of lost connectivity.
The 3003 model helps drive video and audio into tight spaces where you need it. Like an embedded PC, this gateway powers signage to get your message across with the ability to manage and secure it like an IT asset.
Built on system-on-chip, dual-core Intel Atom processors, Dell Edge Gateways also feature BIOS verification and other hardware-level security to help ensure data safety and privacy. Gateway customers also benefit from Dell’s Tier One IT position with reliable quality, tech support options up to 5 years, 5 years lifecycle with support options up to 5 years, flexible supply chain and financing/leasing options.

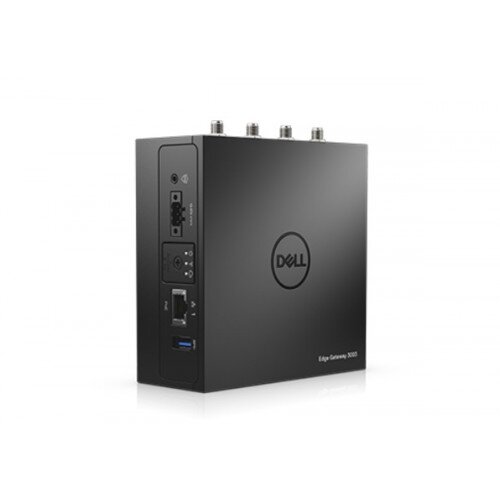

1. External intrusion switch input 2. DC In/Power connector with ignition/wake pin | 3. Status LEDs plus card slots for Micro-SIM and Micro-SD | 4. Fast Ethernet (RJ-45) with PoE |5. USB 3.0 port | 6. Display Port 1.1 | 7.Fast Ethernet (RJ-45) with PoE | 8. USB 2.0 | 9. Audio : 3.5 mm Line In | 10. Audio : 3.5 mm Line Out
