Choose from Ubuntu Core 16.0 and Microsoft Windows 10 IoT Enterprise LTSB – for easy management of your IoT platforms.

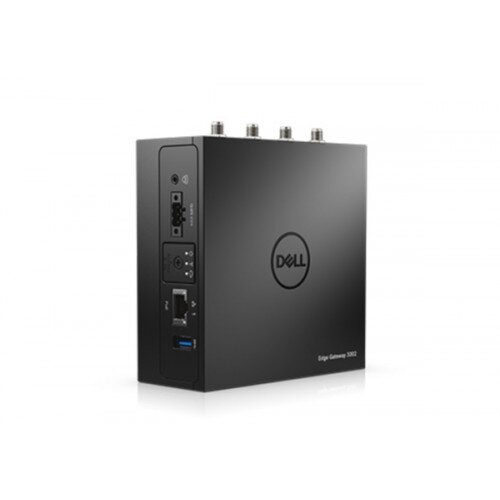

Weighing in at only 1 Kg, the Dell Edge Gateway 3002 is more intelligent, capable and scalable than a standard sensor interface and consolidates the need for separate systems. Enable precise cargo tracking for shipping containers, trailers or railcars and enable efficient management of the following use cases.
Each device comes equipped with a CAN bus interface and integrated ZigBee for mesh networking. This allows seamless communication to the many sensors and systems, whether it's in a vehicle, rail use, marine use and even aircrafts. This makes it cheaper and easier to “talk” to the many sensors and systems that use CAN without wasting an I/O slot.
Experience an uninterrupted work flow with Intel Atom E3805, 2GB RAM, and 8GB eMMC (32GB w/WWAN).
Integrated GPS, accelerometer and atmospheric pressure sensors enable efficient mobile use cases and geo-referenced asset management.
Connect via Ethernet (10/100), WWAN/Cellular, WLAN/Bluetooth LE/Wi-Fi, dual Ethernet, integrated zigbee and benefit from intuitive mesh networking.
Each gateway has a small footprint, comes optimized for wall standard and DIN-rail mounting and cable routing. The perfect fit for truck cabs, kiosks and more.
The gateway helps bridge existing and new protocols to make your applications run smoothly in the edge, fog, or cloud. Dell's growing IoT solution partners continue to provide the right ecosystem no matter what IoT tasks you're trying to perform.
The Edge Gateway 3002, together with analytics software from our partners, performs computing in the edge, in the fog and integrates with computing in the cloud or data center.
Thanks to optional EDM software, you can easily add remote device management for device-level security.
With an operating range of -30°C to 70°C, flexible mounting options, and the ability to withstand high/low temperatures and high shock and vibration, you can work without worry.
Work with other gateways in a tiered architecture to enable distributed computing in today’s harsh manufacturing, transportation and edge of network environments.
With a DC power of 12-57V, the 3002 model powers the gateway during a vehicle's battery cold-crank when voltage could drop down to as low as 6V. The ignition/wake pin allows connection to a vehicle's ignition status and is intended to prevent draining of the vehicle's battery when the vehicle is off for an extended amount of time with 9V+ indicating the engine is running.
With Edge Analytics, you can reduce communication cost and provide real time driver coaching.
Stay in-touch with your shipments thanks to intelligent cargo tracking for shipping containers, trailers or rail cars. This service requires cellular WWAN, GPS and battery - plus integrated ZigBee for cargo tracking.
Built on system-on-chip, dual-core Intel Atom processors, Dell Edge Gateways also feature BIOS verification and other hardware-level security to help ensure data safety and privacy. Gateway customers also benefit from Dell’s Tier One IT position with reliable quality, tech support options up to 5 years with next-day replacement after remote diagnosis, 5 years lifecycle with support options up to 5 years, flexible supply chain and financing/leasing options.
1. External intrusion switch input | 2. DC In/Power connector with ignition/wake pin | 3. Status LEDs plus card slots for Micro-SIM and Micro-SD | 4. Fast Ethernet (RJ-45) with PoE | 5. USB 3.0 port | 6. Fast Ethernet (RJ-45) with PoE | 7. USB 2.0 | 8. CANbus
