Choose from Ubuntu Core 16.0 and Microsoft Windows 10 IoT Enterprise LTSB – for easy management of your IoT platforms.

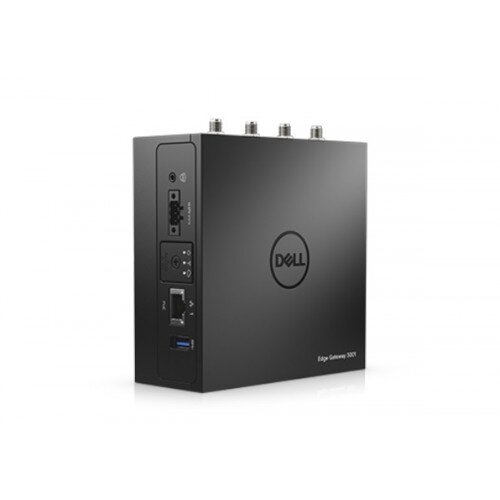

Weighing in around 1kg, the Dell Edge Gateway 3001 embeds itself in countless types of endpoints and employs multiple sensors for precise analytics. This device enables precise light edge analytics even during periods of lost connectivity and is essential in the following use cases.
Multifunction GPIO port (8-channel) for expansion and programmable Serial (2 x RS232 or 422 or 485) ports allow you to work with legacy systems as well as expand your connection options.
Experience an uninterrupted work flow with Intel Atom E3805, 2GB RAM, and 8GB eMMC (32GB w/WWAN).
Integrated GPS, accelerometer and atmospheric pressure sensors let you know where things are and where they’re going.
Connect via Ethernet (10/100), WWAN/Cellular, WLAN/Bluetooth LE/Wi-Fi and benefit from intuitive mesh networking.
Each gateway has a small footprint, comes optimized for wall standard and DIN-rail mounting and cable routing. The perfect fit for manufacturing lines and single application use.
The gateway helps bridge existing and new protocols to make your applications run smoothly in the edge, fog, or cloud. Dell's growing IoT solution partners continue to provide the right ecosystem no matter what IoT tasks you're trying to perform.
The 3001 model, together with analytics software from our partners, performs computing in the edge, in the fog and integrates with computing in the cloud or data center.
Thanks to optional EDM software, you can easily add remote device management for device-level security.
With an operating range of -30°C to 70°C, flexible mounting options, and the ability to withstand high/low temperatures and high shock and vibration, you can work without worry.
Work with other gateways in a tiered architecture to enable distributed computing in today’s harsh manufacturing, transportation and edge of network environments.
The 3001 model supports general-purpose industrial IoT and manufacturing as well as energy management.
Collect, aggregate and process data from wired and wireless sensors at the edge of an IoT network, provide real-time reactions, and relay meaningful data to back end systems.
Built on system-on-chip, dual-core Intel Atom processors, Dell Edge Gateways also feature BIOS verification and other hardware-level security to help ensure data safety and privacy. Gateway customers also benefit from Dell’s Tier One IT position with reliable quality, tech support options up to 5 years, 5 years lifecycle with support options up to 5 years, flexible supply chain and financing/leasing options.
1. External intrusion switch input | 2. DC In/Power connector with ignition/wake pin | 3. Status LEDs plus card slots for Micro-SIM and Micro-SD | 4. Fast Ethernet (RJ-45) with PoE | 5. USB 3.0 port | 6. Multi-function IO connection (programmable DAC, ADC, GPIO) | 7. USB 2.0 | 8. & 9. Configurable serial ports (user selectable to RS-232/RS-422/RS-485 via software
