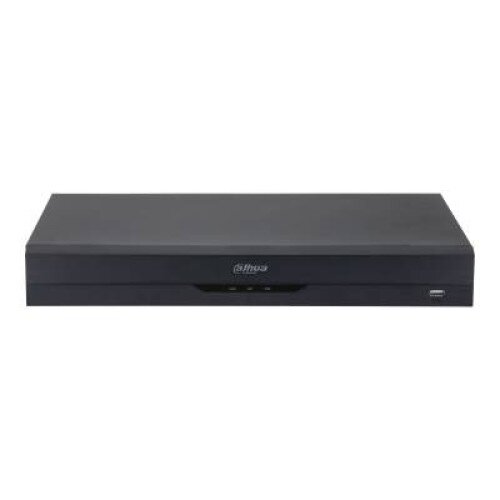

Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder
Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder Display Gallery Item 1
Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder - 2 Display Gallery Item 2
Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder - 3 Display Gallery Item 3

Grab Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder

By: Dahua

Model: XVR5232AN-I3

Sku: U9BAQBGLH8

Be the first to review this product

Sign up for price alert

PKR 94,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Operating Interface: Web; Local GUI
  • QuickPick 2.0 AI by Recorder (Number of Channels): 2 channels
  • Perimeter Performance AI by Recorder (Number of Channels): Advanced Mode: 2 channels, 10 IVS rules for each channel, General Mode: 8 channels, 10 IVS rules for each channel
  • Face Attributes: 6 attributes
  • Face Detection Performance of AI by Recorder (Number of Channels): 2 channels (up to 12 face images/s each channel)
  • Face Database Capacity: Up to 10 face databases with 10,000 images.
  • Face Recognition Performance of AI by Recorder (Number of Channels): 2 channels
  • SMD Plus by Recorder: 32 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera: 48 channels
  • AI Video Quality Analytics by Recorder: 32 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white
  • Scene Changing by Recorder: 1 channel
  • Irregular Black Block Masking by Recorder: 1 channel
  • Analog Camera Input: 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
  • Camera Input: 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps, 2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps, 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
  • IP Camera Input: Up to 48 channels of IPC access, 16 IP channels by default +32 channels (analog channels are converted to IP channels), incoming bandwidth: 192 Mbps, recording bandwidth: 192 Mbps and outgoing bandwidth: 192 Mbps, After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.
  • Encoding Capacity: Encode Enhancement disabled： Main stream: Channels 1-4 and 17-20 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-4 and 17-20 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled： Main stream: Channels 1-8 and 17-24 5M-N@(1 fps–20 fps), others 5M-N@(1 fps-12 fps); (4 channels can be transformed to 5MP@6 fps), Channels 1-8 and 17-24 4M-N/1080p@(1 fps–25 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–30 fps); Sub stream: D1/CIF@(1 fps–15 fps); When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.
  • Dual-stream: Yes
  • Video Bit Rate: 32 kbps–6144 kbps
  • Audio Sampling: 8 kHz, 16 bit
  • Audio Bit Rate: 64 kbps
  • Video Output: 1 HDMI, 1 VGA, 1 CVBS, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
  • Multi-screen Display: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16, The sub screen display conflicts with IP extension function.
  • Third-party Camera Access: Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
  • Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
  • Audio Compression: G.711a; G.711u; PCM
  • Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
  • Mobile Phone Access: iOS; Android
  • Interoperability: ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
  • Browser: Chrome; IE; Safari; Edge; Firefox
  • Record Mode: General; alarm; motion detection; intelligent; POS
  • Recording Playback: 1/4/9/16
  • Backup Method: USB device and network
  • Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback
  • Disk Group: Yes
  • General Alarm: Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
  • Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm: Face detection; face recognition; perimeter protection; SMD Plus
  • Alarm Linkage: Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
  • CVBS Output: 1 channel
  • Audio Input: 1-channel RCA, 32-channel BNC (Coaxial Audio)
  • Audio Output: 1-channel RCA
  • Two-way Talk: Yes (share the same audio input with the first channel)
  • Disk Interface: 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
  • RS-485: 1
  • USB: 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
  • HDMI: 1
  • VGA: 1
  • Network Port: 1 (10/100/1000 Mbps Ethernet port, RJ-45)
  • Power Supply: 12 VDC, 5 A
  • Power Consumption: 16 W (without HDD)
  • Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
  • Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity: 10%–90% (RH), non-condensing
  • Installation: Desktop
Quantity:
  • Add to Wishlist
  • Add to Compare
  • 2-channel QuickPick 2.0 for analog channels which improves target retrieval efficiency.
  • 32-channel SMD Plus for analog channels or 48-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
  • 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
  • 2-channel face recognition for analog channels which supports face comparison.
  • 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
  • Supports HDCVI, AHD, TVI, CVBS and IP video input.
  • Supports up to 48-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 192 Mbps.
  • Smart H.265+ and H.265 dual-stream video compression.
  • IoT and POS capabilities.

In the Box

  • Dahua XVR5232AN-I3 32CH Penta-Brid 1U 2HDDs WizSense Digital Video Recorder
