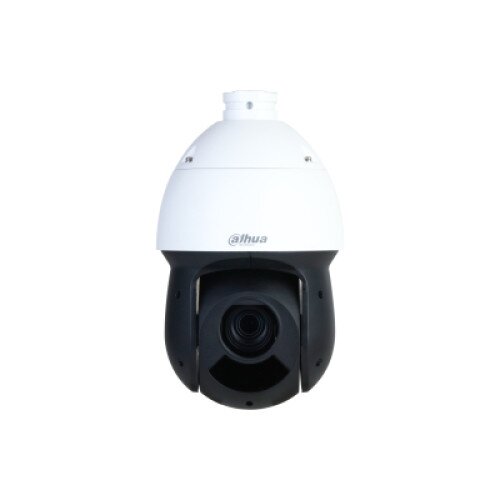

Dahua SD49225DB-HNY 2MP 25x Starlight IR Network PTZ Camera
Dahua SD49225DB-HNY 2MP 25x Starlight IR Network PTZ Camera Display Gallery Item 1
Dahua SD49225DB-HNY 2MP 25x Starlight IR Network PTZ Camera - 2 Display Gallery Item 2

Grab Dahua SD49225DB-HNY 2MP 25x Starlight IR Network PTZ Camera

By: Dahua

Model: SD49225DB-HNY

Sku: HB66OGTSAB

Be the first to review this product

Sign up for price alert

PKR 79,999

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • 1/2.8" 2Megapixel STARVIS™ CMOS.
  • 25× optical zoom.
  • Starlight technology.
  • Max. 25/30 fps@1080p.
  • IR distance up to 100 m.
  • H.265 encoding.
  • Perimeter protection.
  • Face Detection. Up to 8 faces captured at the same time.
Quantity:
  • Add to Wishlist
  • Add to Compare

Camera

  • Image Sensor: 1/2.8" CMOS Pixel: 2 MP
  • Max. Resolution: 1920 (H) × 1080 (V)
  • ROM: 128 MB, RAM: 256 MB
  • Electronic Shutter Speed: 1/1 s–1/30,000 s, Scanning System: Progressive
  • Min. Illumination: Color: 0.005 [email protected], B/W: 0.0005 [email protected], 0 lux (IR light on)
  • Illumination Distance: 100 m (328.08 ft) (IR)
  • Illuminator On/Off Control: Zoom Prio; Manual; Smart IR
  • Illuminator Number: 3 (IR)

Lens

  • Focal Length: 4.8 mm–120 mm Max. Aperture: F1.6–F3.5
  • Field of View: H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2, Optical Zoom: 25x
  • Focus Control: Auto; semi-auto; manual, Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
  • Iris Control: Auto
  • DORI Distance Detect: 1,613 m (5,291.99 ft), Observe: 646 m (2,119.42 ft), Recognize: 323 m (1,059.71 ft), Identify: 161 m (528.22 ft), DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

  • Pan/Tilt Range: Pan: 0° to 360° endless, Tilt: –15° to +90°, auto flip 180°
  • Manual Control Speed: Pan: 0.1°/s–80°/s, Tilt: 0.1°/s–80°/s
  • Preset Speed: Pan: 80°/s; Tilt: 80°/s, Preset: 300
  • Tour: 8 (up to 32 presets per tour), Pattern: 5
  • Scan: 5, Power-off Memory: Yes
  • Idle Motion: Preset;Pattern;Tour;Scan: PTZ Protocol, DH-SD: Pelco-P/D (Auto recognition)

Intelligence

  • IVS (Perimeter Protection): Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
  • Face Detection: Supports face detection, capturing pictures, and face enhancement, SMD: SMD 3.0
  • Auto Patrol: It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Video

  • Video Compression: Smart H.265+;H.265;Smart H.264+;H.264;H.264B;MJPEG(Sub Stream), Streaming Capability: 3 streams
  • Resolution: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240), Video Frame Rate: Main stream: 1080p/960p/720p@(1–25/30 fps), Sub stream 1: D1/VGA/CIF@(1–25/30 fps), Sub stream 2: 1080p/960p/720p@(1–25/30 fps)
  • Bit Rate Control: CBR/VBR, Video Bit Rate: H.264: 1792 kbps–8192 kbps, H.265: 512 kbps–5632 kbps
  • Day/Night: Auto (ICR)/Color/B/W, BLC: Yes, WDR: 120 dB
  • HLC: Yes, White Balance: Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp, Gain Control: Auto; manual
  • Noise Reduction: 2D NR; 3D NR, Motion Detection: Yes, Region of Interest (RoI): Yes
  • Image Stabilization: Electronic (EIS), Defog: Electronic, Digital Zoom: 16×
  • Image Rotation: 180°, Privacy Masking: Up to 24 areas can be set, with up to 8 areas in the same view, S/N Ratio: 55 dB

Audio

  • Audio Compression: G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729

Network

  • Network Port: RJ-45 (10/100 Base-T)
  • Network Protocol: HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS
  • Interoperability: CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T), Streaming Method: Unicast/Multicast, User/Host: 20 (total bandwidth: 64 M)
  • Storage: FTP; Micro SD card (512 GB); NAS, Browser: IE 7 and later versions, Chrome, Firefox, Safari
  • Management Software: DMSS; DSS Pro, Mobile Client: iOS; Android; iPhone; iPad

Certification

  • Certifications: CE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB, ANSI C63.4- 2014

Port

  • Audio Input: 1 channel (LINE IN, bare wire), Audio Output: 1 channel (LINE OUT,bare wire), Alarm Linkage: Capture; preset; tour; pattern; recording; alarm digital input; audio; send email
  • Alarm Event: Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
  • Alarm I/O: 2/1, Audio I/O: 1/1

Power

  • Power Supply: 12 VDC/3 A ( 10%), PoE (802.3at)
  • Power Consumption: Basic: 12 W, Max.: 20 W (IR light)

Environment

  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Operating Humidity: 95%
  • Protection: IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

In the Box

  • Dahua SD49225DB-HNY 2MP 25x Starlight IR Network PTZ Camera
