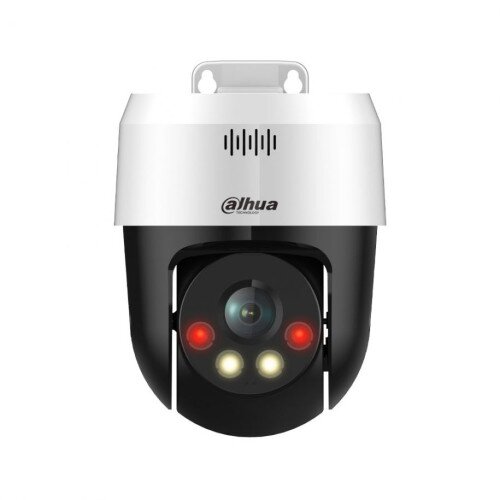

Grab Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera

Camera

• Image Sensor: 1/2.8" CMOS
• Pixel: 5 MP
• Max. Resolution: 2560 (H) × 1920 (V)
• ROM: 128 MB
• RAM: 128 MB
• Electronic Shutter Speed: 1 s–1/100,000 s
• Scanning System: Progressive
• Min. Illumination: 0.05 [email protected] (Color, 30 IRE); 0.005 [email protected] (B/W, 30 IRE)
• Illumination Distance: 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)
• Illuminator On/Off Control: Manual; auto; off
• Illuminator Number: 2 (IR light); 2 (warm light)

Lens

• Focal Length: 4.0 mm
• Max. Aperture: F1.6
• Field of View: H: 80.4°; V: 58.1°; D: 104.8°
• Close Focus Distance: 0.3 m (0.98 ft)
• Iris Control: Fixed
• DORI Distance:
• Lens: 4.0 mm
• Detect: 77.4 m (253.94 ft)
• Observe: 31.0 m (101.71 ft)
• Recognize: 15.5 m (50.85 ft)
• Identify: 7.74 m (25.39 ft)

PTZ

• Pan/Tilt Range: Pan: 0° to 345°; Tilt: 0° to +80°
• Manual Control Speed: Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s
• Preset Speed: Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s
• Preset: 300
• Power-off Memory: Yes
• Idle Motion: Preset

Smart Event

• IVS: Tripwire; intrusion
• Human Detection: Yes

Intelligence

• SMD: SMD 3.0

Active Deterrence

• Light Warning: Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
• Sound Warning: Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10.

Video

• Video Compression: Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream 1)
• Streaming Capability: 2 streams
• Resolution: 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
• Video Frame Rate: Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps); Sub stream 1: D1/VGA/CIF@(1–25/30 fps)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H264: 104 kbps-8,192 kbps; H265: 41 kbps-8,192 kbps
• Day/Night: Auto (ICR); Color/B/W
• BLC: Yes
• WDR: DWDR
• HLC: Yes
• White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
• Gain Control: Auto; manual
• Noise Reduction: 2D NR; 3D NR
• Motion Detection: Yes
• Region of Interest (RoI): Yes
• Defog: Electronic
• Image Rotation: 180°
• Privacy Masking: 4 area
• S/N Ratio: ≥55 dB

Audio

• Audio Compression: PCM；G.711a；G.711Mu；G.726；AAC；

Network

• Network Port: RJ-45 (10/100 Base-T)
• Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP
• Interoperability: CGI; SDK; ONVIF (Profile S & Profile T); RTMP; P2P
• Streaming Method: Unicast/Multicast
• User/Host: 20 (total bandwidth: 64 M)
• Storage: Micro SD card (256 GB); FTP
• Browser: IE: IE 7 and later versions; Chrome; Firefox; Safari
• Management Software: Smart PSS; DMSS; Player; ConfigTool; NVR; Smart Player
• Mobile Client: iOS; Android

Certification

• Certifications: CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1, FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

• Audio Input: 1 channel (built-in mic)
• Audio Output: 1 channel (built-in speaker)
• Alarm Linkage: Capture; preset; recording; audio; sending email
• Alarm Event: Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

• Power Supply: 12 VDC/1.5 A ± 10% PoE (802.3af)
• Power Consumption: Basic: 3.5 W; Max: 10 W (illuminator)
• Power Adapter: Optional

Environment

• Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)
• Operating Humidity: (95%
• Protection: TVS 2000 V lightning proof; surge protection; voltage transient protection;Waterproof and Dustproof

Filter

• Remarks: * The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model

In the Box

• Dahua SD2A500NB-GNY-A-PV 5MP Smart Dual Light Network PT Camera
