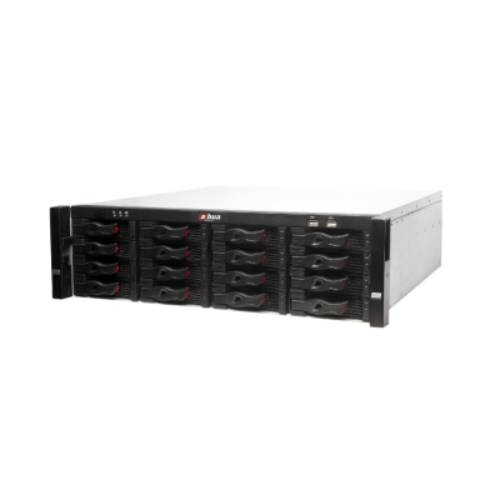

Dahua NVR616R 64/128 4KS2 Channel 3U Ultra Series Network Video Recorder
Dahua NVR616R 64/128 4KS2 Channel 3U Ultra Series Network Video Recorder Display Gallery Item 1

Grab Dahua NVR616R 64/128 4KS2 Channel 3U Ultra Series Network Video Recorder

By: Dahua

Model: NVR616R 64/128 4KS2

Sku: ACU693AWAG

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • System: Main Processor: Industrial Embedded Micro-Processor, Operating System: Embedded Linux, Operation Interface: Web/local GUI
  • Perimeter Protection by Camera: Performance: 24 Channels, AI Search: Search pictures by channel, time, event type
  • Face Recognition by Camera: Performance: 24 Channels, Face Attributes: 6 Attributes: Gender, age, Glasses, Expression, Mouth Mask, and Beard, AI Search: Search pictures by channel, time and face attributes
  • SMD Plus by Camera: Performance: 32 Channels, AI Search: Search by target classification (Human, Vehicle)
  • Video Metadata by Camera: Performance: 12 channels, Human Body: Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella, Vehicle: Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, Region, Non-Motor Vehicle: Type, color, Number of Passengers, Helmet, AI Search: Support search target video by metadata
  • ANPR by Camera: Performance: 8 channels
  • Stereo Analysis by Camera: Performance: 32 Channels, AI Search: Search by target Classification (Fall Detection, People Approach Detection, People No. Exception Detection, People Staying Detection, Violence Detection)
  • Video: Access Channel: 64/128, Network Bandwidth: 384 Mbps for Access, 384 Mbps for Storage and 384 Mbps for Forwarding, Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/960p/720p/D1/CIF/QCIF, Decoding Capability: 16-ch@1080p (30 fps), Video Output: VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, HDMI1/HDMI2: 3840 × 2160@30 fps, 3840 × 2160, @25 fps, 1920 × 1080, 1280 × 1024, 1280 × 720, 1 channel VGA output, 2 channels HDMI output, VGA and HDMI 1 homologous output, double HDMI heterogeneous output. Support 4K display for both HDMI1 and HDMI2, Multi-screen Display: 1st Screen: 1/4/8/9/16/25/36/64, 2nd Screen: 1/4/8/9/16, Third Party Camera Access: Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Onvif, Canon and More
  • Compression: Video: Smart H.265+/H.265/Smart H.264+/H.264/MPEG4/MJPEG, Audio: AAC/MP2/G726/G729/G722/G723/G711A/G711U/PCM
  • Network: Network Protocol: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P, Mobile Phone Access: iOS, Android Interoperability: ONVIF (profile T/S/G), CGI, SDK, Browser: Chrome, IE9 or later, Firefox
  • Record Playback: Multi-channel Playback: 1/4/9/16, Record Mode: Manual, Schedule (General, MD (Motion Detection), Alarm, MD & Alarm, Intelligent, POS), Storage Method: Local HDD and Network, Backup: Hard drive, USB device, eSATA Device, Playback Function: 1. Play, pause, stop, fast forward, fast backward, rewind, play by Frame, 2. Full screen, backup (cut/file), partially enlarge, audio on/off
  • Storage: Disk Group: Support, Raid Support: RAID 0/1/5/6/10
  • Alarm: General Alarm: Motion detection, privacy masking, video loss, local alarm, PIR alarm, IPC Alarm, Anomaly Alarm: Camera offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security Anomaly Intelligent Alarm: Perimeter protection, face detection, face recognition, SMD, video metadata (human, motor-vehicle, non-motor vehicle), ANPR, people counting, stereo analysis, crowd distribution, heatmap,video quality Diagnosis, Alarm Linkage: Record, snapshot, IPC external alarm output, buzzer, log, preset, email
  • External Port: Audio Input: 1 channel, RCA Connector, Audio Output: 1 channel, RCA Connector, HDD: 16 SATA III ports, up to 10 TB for a single HDD, Alarm Input: 16 Channels, Alarm Output: 8 channels, eSATA: 1 eSATA, SAS: 1 Mini SAS Port, for Storage Expansion, RS-232: 1 channel, used to debug and pass through Serial Data, RS-485: 1 channel, used to control PTZ, and it supports Multiple Protocols, USB: 2 front USB 2.0 ports, 2 rear USB 3.0 Ports, HDMI: 2, VGA: 1, Network: 6 in total, 4 × RJ45 10/100/1000 Mbps self-adaptive Ethernet ports and 2 × 1000 Mbps optical port
  • Power Supply: Redundant, AC100V–240V, 50–60 Hz, Power Consumption: ( 51 W (Without HDD)
  • Operating Conditions: –10°C to +55°C (+14°F to +131°F), +35°C (+95°F) when Raid Enabled, Storage Conditions: 0°C to +40°C (+32°F to +104°F)
  • Operating Humidity: 10%–93% (RH), Storage Humidity: 30%–85% (RH)
  • Operating Altitude: 3000 m (9843 ft)
  • Certifications: CE: EN55022, EN55024, EN50130-4, EN60950-1, FCC: Part 15 Subpart B, ANSI C63.4-2014, UL: UL 60950-1 and CAN/CSA C22.2 No.60950-1
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare
  • New 4.0 user interface
  • 16-channel decoding @1080p (30 fps); self-adaptive decoding capabil ity
  • Access, storage or forwarding at 384 Mbps
  • Simultaneous video output for VGA and HDMI1; 4K heterogeneous output for the 2 HDMI ports
  • Multiple data mode such as Raid0, Raid1, Raid5, Raid6, and Raid10
  • Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the same model in batches
  • AI-by-camera functions such as perimeter protection, face detection and recognition, SMD Plus, video metadata, ANPR and 3D behavior analysis
  • N+M cluster. When the host fails, the standby device will continue to record; once the host recovers, video recorded on the standby device will be transmitted back

In the Box

  • Dahua NVR616R 64/128 4KS2 Channel 3U Ultra Series Network Video Recorder
