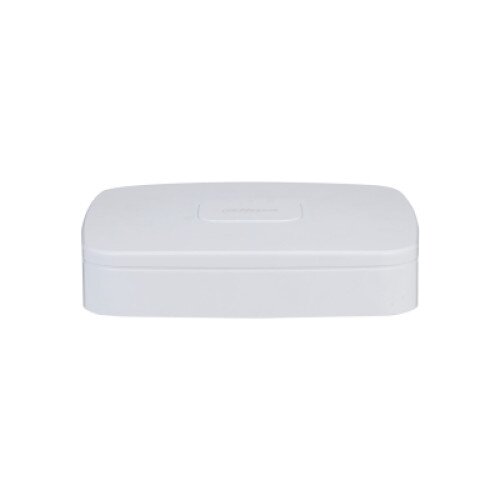

Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder
Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder Display Gallery Item 1
Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder - 2 Display Gallery Item 2
Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder - 3 Display Gallery Item 3

Grab Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder

By: Dahua

Model: NVR2104-4KS3

Sku: 6VOXBMFZ3V

Be the first to review this product

Sign up for price alert

PKR 21,699

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
  • Max. decoding capability: 6 × 1080p@30 fps.
  • Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
  • Supports IP cameras with a resolution up to 12 MP.
  • AI by Recorder supports 4-channel SMD.
  • AI by Camera supports perimeter protection and SMD.
  • Supports one-click arming and disarming.
Quantity:
  • Add to Wishlist
  • Add to Compare

System

  • Main Processor: Industrial-grade processor
  • Operating System: Embedded Linux
  • Operating Interface: Web, Local GUI

AI

  • AI by Recorder: SMD
  • AI by Camera: Perimeter protection; SMD

Perimeter Protection

  • Perimeter Performance of AI by Camera (Number of Channels): All channels (4 targets/s)

SMD Plus

  • SMD Plus by Recorder: 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
  • SMD Plus by Camera: All channels (8 targets/s)

Audio and Video

  • Access Channel: 4 channels
  • Network Bandwidth: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
  • Resolution: 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
  • Decoding Capability: AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps, AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps
  • Video Output: 1 HDMI, 1 VGA, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
  • Multi-screen Display: 1/4
  • Third-party Camera Access: ONVIF

Compression Standard

  • Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
  • Audio Compression: G.711a; G.711u; PCM; G726;

Network

  • Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
  • Mobile Phone Access: iOS; Android
  • Interoperability: ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
  • Browser: Chrome; IE; Safari; Edge; Firefox

Recording Playback

  • Multi-channel Playback: Up to 4 channels
  • Record Mode: General, motion detection; intelligent; alarm
  • Backup Method: USB device and network
  • Playback Mode: Instant playback; general playback; event playback; tag playback; smart playback

Alarm

  • General Alarm: Motion detection; camera external alarm; PIR alarm
  • Anomaly Alarm: Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
  • Intelligent Alarm: Perimeter protection; SMD Plus
  • Alarm Linkage: Recording; snapshot; buzzer; log; preset; email; tour

Port

  • Audio Input: 1-channel RCA
  • Audio Output: 1-channel RCA
  • Alarm Input: NA (2 channels are optional)
  • Alarm Output: NA (1-channel 12 V 1 A output is optional)
  • Disk Interface: 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
  • USB: 2 (2 rear USB 2.0 ports)
  • HDMI: 1
  • VGA: 1
  • Network Port: 1 (10/100 Mbps Ethernet port, RJ-45)

General

  • Power Supply: 12 VDC, 1.5 A
  • Power Consumption: 10 W (without HDD)
  • Operating Temperature: –10 °C to +55 °C (14 °F to +131 °F)
  • Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
  • Operating Humidity: 10%–93% (RH), non-condensing
  • Certifications: CE-LVD: IEC 62368-1:2014, CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

In the Box

  • Dahua NVR2104-4KS3 4CH Smart 1U 1HDD Lite Network Video Recorder
