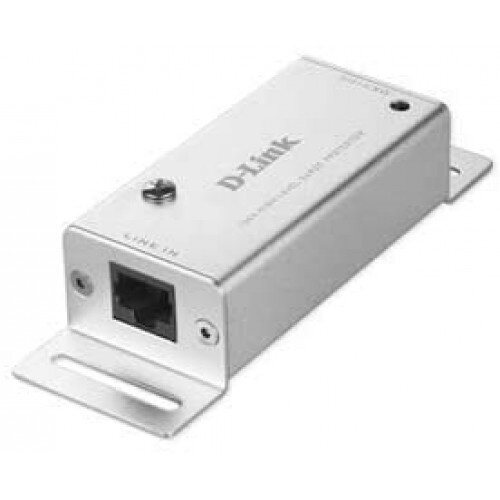

D-Link PoE Lightning Protector
D-Link PoE Lightning Protector Display Gallery Item 1
D-Link PoE Lightning Protector - 2 Display Gallery Item 2

D-Link PoE Lightning Protector Price in Pakistan

By: D-Link

Model: DPE-SP110I

Sku: LS1SWX3FMB

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Line In Port (Line IN): 1 x RJ45 port (power + data in), Compatible with 10/100/1000Base-T, PoE Passthrough
  • Line Out Port (Device): 1 x RJ45 port (power + data out), Compatible with 10/100/1000Base-T, PoE Passthrough
  • Maximum Discharge Current: 10 kA
  • Common Mode (Line-to-Ground) Protection: 20 kV (10/700 us), 10 kA (8/20 us)
  • Differential Mode (Line-to-Line) Protection: 6 kV (10/700 us), 1 kA (8/20 us)
  • Clamping Voltage (Line-to-Ground): 600 V at 10 kA
  • Clamping Voltage (Line-to-Line): 20 V at 1 kA
  • Surge Protection Response Time: 5 ns
  • PoE Passthrough: Supports IEEE 802.3af/at, Supports up to 35 W PoE passthrough
  • Service Life (per device): OFF - normal, ON - Device has reached its service life and needs to be replaced
  • Maximum PoE Operation DC Voltage: 60 V DC
  • Maximum PoE Operation DC Current: 1 A
  • Operation Temperature: -40 to 85 °C (-40 to 185 °F)
  • Storage Temperature: -40 to 85 °C (-40 to 185 °F)
  • Humidity: 0 to 95%, non-condensing
  • Material: Aluminium
  • Ground Cable: AWG12
  • Mean Time Between Failure (MTBF): 923,617 hours
  • Certifications: CE, IEC 61643-21 (10 kA), IEC 61000-4-5, ITU-T K-Series, RoHS 6
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

High-Performance Surge Protection

Any type of sudden electrical surge can damage electronic equipment beyond practical repair. The DPE-SP110I PoE Lightning Protector protects your network equipment from damage caused by lightning or other static charge buildup. In the event of an electricity surge, it will cut off or divert all the excess electricity while continuing to let through the regular amount of power necessary for your equipment to work as normal.

High Surge Capability

The DPE-SP110I features a higher surge capability and lower clamping voltage. This durable design aims to reduce maintenance costs. The 10 kA impulse discharge current guarantees reliable surge protection. The DPE-SP110I is also compliant with the IEC 61643-21 standard, meaning it automatically covers all other existing international standards such as the ITU-T K-Series and IEC 61000-4-5.

High Speed PoE Connectivity

The DPE-SP110I can work as a transmitter for a PoE switch to deliver power and data through an Ethernet cable. This device protects all 8 pins and is compatible with all types of RJ45 cables. The DPE-SP110I can handle data rates of up to 1000 Mbps and is backwards compatible with older 10/100 Mbps ports while also providing support for both PoE and PoE+ standards.

Reliable and Exclusive Technology for Protectioin

Most lightning/surge protectors usually use two components in the design: Gas Discharge Tube (GDT) and Silicon Avalanche Diodes (SAD). However, GDT induces an unbalanced current, and SAD has limited surge capabilities (usually ( 500A).

When GDT + SAD structure are applied together in the field, the protector would often be damaged when the surge is over 2KA ~ 3KA due to SAD punch-through.

Some protectors are even designed consisting of only a single component GDT, which causes unbalanced currents that may do damage to equipment.

The DPE-SP110I is designed with patented technology to balance electrical surge current on each line to maximize surge capability, up to 10kA (20KV) to ensure your device has the best protection from the uncertain risk of lightning.

Safely protect your network equipment from damage caused by lightning or other static charge buildup.

  • Suitable for all PoE equipment and Ethernet devices
  • 10/100/1000 Mbps connection up to 100 m
  • Compact and easy-to-install design
  • Surge compliance with IEC 64633-21 / IEC 61000-4-5 / ITU-T K-Series
  • Suitable to use in harsh environments with a wide temperature operation range of (-40 to 75 °C)
  • Supports PoE Standard IEEE 802.3af/at

In the Box

  • D-Link PoE Lightning Protector
  • User Manual
