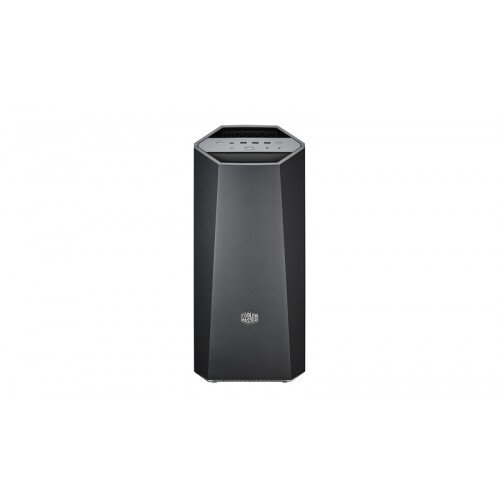

Cooler Master MasterCase Maker 5 Mid Tower Case Price in Pakistan

By: Cooler Master

Model: MCZ-005M-KWN00

Sku: Z3EO5KD01A

PKR 114,899

& FREE Standard Delivery

Availability: In Stock In Stock New

  • M/B Type: ATX, microATX, Mini-ITX
  • 5.25" Drive Bays: 2
  • 3.5" Drive Bays: 5
  • 2.5" Drive Bays: 2+5
  • I/O Panel: USB 3.0 x1, USB 3.0 (type C) x1, USB 2.0 x2, Audio In & Out (supports HD Audio)
  • Expansion Slots: 7
  • Cooling Support: Front: 140x25mm fan x2, 1200RPM (pre-Installed),140 x 25mm fanx1 (optional),Rear: 140x25mm fan x1, 1200RPM (pre-Installed),120mm fan x1 (optional),Top: 120/140mm fan x2 (optional)
  • Radiator Support: Front: 120mm, 140mm, 240mm, 280mm (requires removal of ODD cage),Rear: 120mm, 140mm,Top: 120mm, 140mm, 240mm, 280mm (max. 297mm radiator length)
  • Lighting Support: Red LED strip x 1(pre-Installed),4 LED: connections available
  • Power Supply: Bottom Mount, ATX PS2 (maximum length: 200mm)
  • Compatibility (Maximum: )VGA card length: 412mm/16.22 inch (without 3.5” HDD cage),296mm/11.7 inch (with 3.5” HDD cage),CPU cooler height: 190mm/7.48 inch
Quantity :

MasterCase Series

The new wave of case technology pioneered by our MasterCase series crests with the unique FreeForm Modular System, which allows unparalleled flexibility to upgrade your case via the addition of top panels or doors, change aesthetics, thermal performance and layout flexibility. The MasterCase Maker 5 advances beyond the concept of a standard build by offering the option to completely swap and adjust the case's form and functionality with multiple interior and exterior outlooks, ample space and customized accessories.

FreeForm Modular System


We want you to have absolute control over how your case looks and functions. The FreeForm Modular System of the MasterCase lets you adjust the exterior structure and aesthetic via a range of replacement panels and doors.



MasterCase Maker 5 reveals a simple yet modern style with customization options such as a magnetic top cover with plate, a padded front door for sound suppression and an illuminated glossy I/O panel.


Have an awesome idea, and the ability to express them in everything you make or do? Download the 3D-graphic file for external modularity to customize and accessorize. (STP files available for download).

Adjust Internal Layout


Leveraging our unique clip-and-click technology, vertically adjust or entirely remove your optical disk drive (ODD) and HDD via sliding locks. Just click-in the cages, and adjust the height to suit your needs. Position them at the top to allow room for up to three extra-long graphics cards, or retain only the bottom positioned cages to add a front-mounted radiator for even more cooling options.


The first Cooler Master case to incorporate two easy to install slip-and-clip solid-state drive pockets (2.5") with four easy mounting positions. Showcase them on the partition panel or hide them behind the motherboard tray for a cleaner look.

  • Two behind the motherboard tray
  • Two on top of power supply partition


FreeForm enables the option to install three front-mounted 140mm fans and a 280mm radiator for unmatchable ventilation due to a unique facility to horizontally shift the bottom-mounted hard disk drives. There's also support for up to six 140mm fans through the case, unique for a mid-sized tower.

I/O Panel

Equipped with an upgraded I/O panel, you get buttons for the LED strip, fan speed control and four USB ports including USB 3.0 Type C. Ensure your rig will be future proof and support the devices of tomorrow.

Led & Fan Controller Board

The controller board supports up to six fans and four LED strips, allowing for high (12V) and low (7V) fan speeds and LED lighting for stripes or fans with three modes (on, off and breathing effect).

Led & Fan Controller Board

The MasterCase Maker 5 includes a magnetic LED Strip that beams with a red glow ensuring your rig is lit up. The strip can be placed anywhere in the case.

In the Box

  • Cooler Master MasterCase Maker 5 Mid Tower Case
  • Screw Kit
  • Top Cover Panel
  • Front Panel Door
