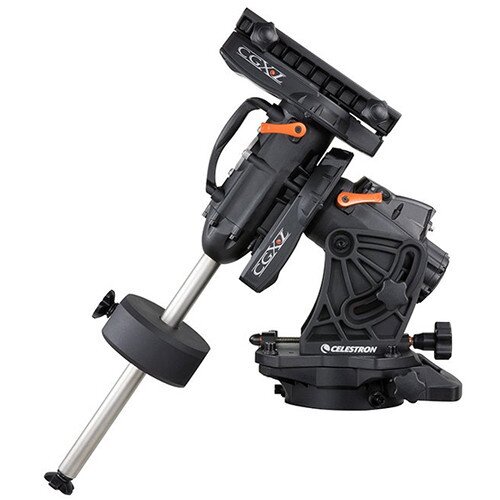

Celestron CGX-L Equatorial Mount
Celestron CGX-L Equatorial Mount Display Gallery Item 1
Celestron CGX-L Equatorial Mount - 2 Display Gallery Item 2
Celestron CGX-L Equatorial Mount - 3 Display Gallery Item 3
Celestron CGX-L Equatorial Mount - 4 Display Gallery Item 4
Celestron CGX-L Equatorial Mount - 5 Display Gallery Item 5
Celestron CGX-L Equatorial Mount - 6 Display Gallery Item 6
Celestron CGX-L Equatorial Mount - 7 Display Gallery Item 7

Celestron CGX-L Equatorial Mount Price in Pakistan

By: Celestron

Sku: UCF4RUEKRS

Be the first to review this product

Sign up for price alert

PKR 2,855,999

& FREE Standard Delivery

PKR 2,014,799

& FREE Standard Delivery

PKR 2,014,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Mount Type: Computerized Equatorial
  • Latitude adjustment range: 3 - 65
  • Slew Speeds: 9 slew speeds - max speed 3°/second
  • Tracking Rates: Sidereal, Solar and Lunar
  • Tracking Modes: EQ North & EQ South
  • GPS: N/A
  • Dovetail Compatibility: Dual saddle plates (CG-5 and CGE saddle)
  • Number of Auxiliary ports: 4 Aux ports (Hand Control can use any Aux port, 2 are located near the dovetail saddle for optional accessories)
  • Autoguide port: Yes, 2 ports (one is located near the dovetail saddle)
  • USB Port: Yes, input for Mount and Hand Control
  • Power Requirements: 12V DC, 3 amps
  • Motor Drive: DC servo motors
  • Alignment Procedures: 2-Star Align, 1-Star Align, Solar System Align, Last Alignment, Quick Align
  • Periodic Error Correction: Yes
  • Computerized Hand Control: 2 line x 18 character backlit Liquid Crystal Display, 19 LED backlit buttons, USB 2.0 port for PC connection
  • NexStar+ Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Quantity:
  • Add to Wishlist
  • Add to Compare

Celestron's CGX-L Computerized Equatorial mount is the latest addition to our fully computerized equatorial mount series. Capable of carrying Celestron’s largest optical tubes with ease, CGX-L is designed for backyard observatories and remote imagers looking for exceptional load capacity to weight ratio, compact design, and innovative features that fully support large telescopes, imaging kits, and the latest in wireless tech accessories.

Key design goals included larger 144mm diameter worm wheels which provide smoother operation and can more accurately drive heavier loalonger 270mm dovetail saddle to support larger optical tubes, remote operation friendly features such as home and limit optical sensors, easier polar alignment adjustments, and better cable management overall. In addition to that, we’ve made mechanical and ergonomic improvements throughout to make the mount sturdier, easier to use, and easier to transport. COMPACT. ERGONOMIC. INNOVATIVE.

  • Additional Aux accessory ports and autoguider port on the Dec axis for better cable management
  • Larger 144mm diameter worm wheels to better and more accurately drive heavier loads
  • Longer 270mm dovetail saddle to better support larger optical tubes
  • Heavy duty, 31.5mm stainless steel counterweight shaft to support additional counterweights
  • Spring-loaded brass worm wheel and stainless steel worm gear reduce friction and provide optimum gear mesh
  • Adjustable EQ head position to optimize center of gravity and fully utilize the increased 3-65 latitude range

In the Box

  • Celestron CGX-L Equatorial Mount
  • CGX-L Equatorial Head
  • CGX-L Tripod
  • Accessory Tray
  • 1 x 22 lbs counterweight
  • NexStar+ Hand Control
  • DC Power Cable
  • 8mm Allen wrench (contained in rear carry handle)
