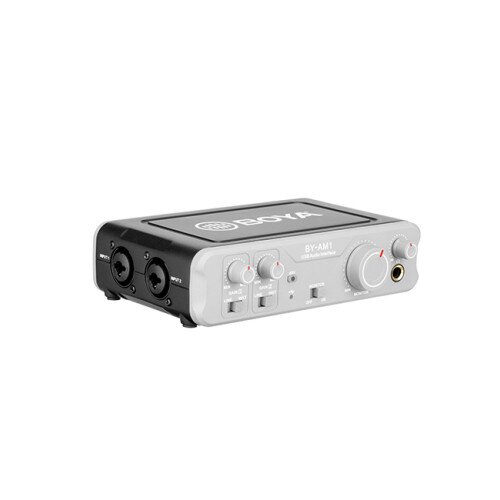

BOYA BY-AM1 Dual-Channel Audio Mixer
BOYA BY-AM1 Dual-Channel Audio Mixer Display Gallery Item 1
BOYA BY-AM1 Dual-Channel Audio Mixer - 2 Display Gallery Item 2
BOYA BY-AM1 Dual-Channel Audio Mixer - 3 Display Gallery Item 3
BOYA BY-AM1 Dual-Channel Audio Mixer - 4 Display Gallery Item 4
BOYA BY-AM1 Dual-Channel Audio Mixer - 5 Display Gallery Item 5

BOYA BY-AM1 Dual-Channel Audio Mixer Price in Pakistan

By: BOYA

Model: BY-AM1

Sku: WDE9TF7DEX

Be the first to review this product

Sign up for price alert

PKR 27,399

& FREE Two-Day Delivery

Availability: In Stock In Stock

New

  • Dual-channel audio mixer for dynamic/condenser XLR mics, line-level or instrument signals.
  • Compatible with computers, laptops, speakers.
  • No-latency headphone monitoring (Includes 6.35mm to 3.5mm TRRS adapter).
  • 6.35mm/XLR combo inputs, 6.35mm audio outputs.
  • USB 2.0 connection.
  • Supply 48V phantom power via XLR input.
  • 1/4"threaded hole for tripod mounting.
  • Microphone Inputs: Frequency Response:20Hz- 20kHz±0.1dB/ Maximum lnput Level:9dBu (at minimum gain)
  • Line Inputs: Frequency Response: 20Hz- 20kHz±0.1dB/ THD: (0.01%/ S/N: 80dBU/ Maximum lnput Level: 15dBu (at minimum gain)/ Gain Range: 50dB/ lmpedance: 47kΩ
  • Instrument Inputs: Frequency Response: 20Hz - 20kHz±0.1dB/ Maximum lnput Level: 8dBu (at minimum gain)
  • Headphone Outputs: S/N: 75dB/ THD: (0.01%/ Maximum Output Level: 6dBu/ lmpedance: (10Ω/ Sampling Rates: 44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz/ USB Connecction: USB 2.0 (USB-B connector)/ Power Requirements: Powered by computers/ Power Supply: 48V Phantom Power
  • Line/Monitor Outputs: S/N: 80dBU/ THD: (0.01%/ Maximum Output Level: 10dBu/ lmpedance: 470Ω
Quantity:
  • Add to Wishlist
  • Add to Compare

The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58), which allows you to easily mount and control input devices, and to transmit the output signal to your computer.

In the Box

  • BOYA BY-AM1 Dual-Channel Audio Mixer
  • 6.6'(2m) USB-A to USB-B Cable
  • 6.35mm to 3.5mm TRRS Audio Adapter
