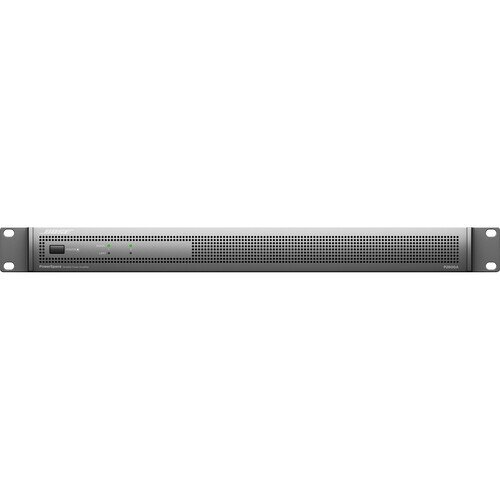

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P2600A provides 600 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.
- 600 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
- AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
- Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
- I-Share outputs deliver 2x power level by combining the current of two channels
- Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
AMPLIFICATION
- Channel Separation (Crosstalk): 80 dB at 1 kHz, > 65 dB at 20 kHz
- Dynamic Range: 100 dB at rated power, A-weighted
- Frequency Response: 20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (1 dB) at 1 W with 50 Hz high-pass filter, 70/100V
- Gain, High-Impedance: 35 dB, 70V mode / 38 dB, 100V mode
- Gain, Low-Impedance: 35 dB
- Maximum Peak Power, Symmetrical: 1200 W
- Number of Channels: 2
- Power Class: Class D
- Rated Power, Symmetrical: 600 W
- THD+N: 0.04% at 1 kHz, 4–8 Ω, 70V/100V
AUDIO INPUTS, ANALOG
- Input Channels: 2 balanced
- Connectors: 6-pin Euroblock
- Input Impedance: 10 kΩ
- Maximum Input Level: 22 dBu at 14 dBu sensitivity
- Sensitivity: -10 dBV, 4 dBu, 14 dBu
AUDIO INPUTS/OUTPUTS, DIGITAL
- Channels: 8 AmpLink in, 8 AmpLink thru
- Connectors: (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru
- Type: 6-pin Euroblock
AUDIO OUTPUTS, ANALOG
- Channels: 2
- Connectors: (1) 4-terminal block
INDICATORS AND CONTROLS
- Controls, Front Panel: power button
- Controls, Rear Panel: Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity
- LED Status Indicators: power/status LED, (4) input signal LEDs, (4) output limit LEDs
