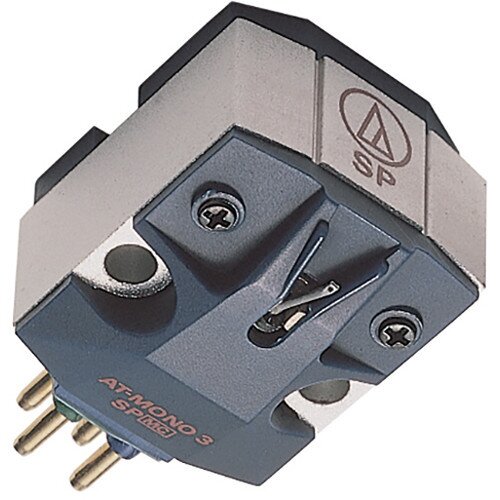

Audio-Technica AT-MONO3/SP Dual Moving Coil Cartridge Price in Pakistan

By: Audio-Technica

Model: AT-MONO3/SP

Sku: K0J08ZDKDJ

PKR 40,299

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Frequency Response: 20-15,000 Hz
  • Vertical Tracking Angle: 23°
  • Vertical Tracking Force: 3.0-7.0 g (5.0 g standard)
  • Recommended Load Impedance: 400-47,000 ohms*
  • Coil Impedance: 40 ohms (1 kHz)
  • DC Resistance: 40 ohms
  • Coil Inductance: 190 µH (1 kHz)
  • Output: 1.2 mV (at 1 kHz, 12 cm/sec)
  • Stylus Shape: 2.5 mil conical
  • Stylus Type: Bonded round shank
  • Cantilever: Aluminum pipe
  • Static Compliance: 10 x 10-6 cm/dyne
  • Dynamic Compliance: 3.5 x 10-6 cm/dyne (100 Hz)
  • Mount: Half-inch
Quantity :

The AT-MONO3/SP is a high-output (1.2 mV) moving coil cartridge designed specifically for use with 78 RPM mono shellac records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT-MONO3/SP cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction to keep groove wear to a minimum. The voice coils are wired in series, resulting in one mono signal that is transmitted to the cartridge’s white-blue terminals and red-green terminals in order to feed both inputs of a stereo phono preamp.

The cartridge’s low-mass 2.5 mil conical stylus is mounted on an aluminum cantilever for excellent tracking of the wider 78 RPM shellac grooves. The cartridge features a strong, rigid body of die-cast aluminum alloy and synthetic resin to eliminate unnecessary vibrations.

In the Box

  • Audio-Technica AT-MONO3/SP Dual Moving Coil Cartridge
  • Non-magnetic screwdriver
  • 2 washers
  • 2 nuts
  • cartridge installation screws (13 mm × 2, 20 mm × 2)
  • plastic protector
  • brush
  • PCOCC lead wire set
