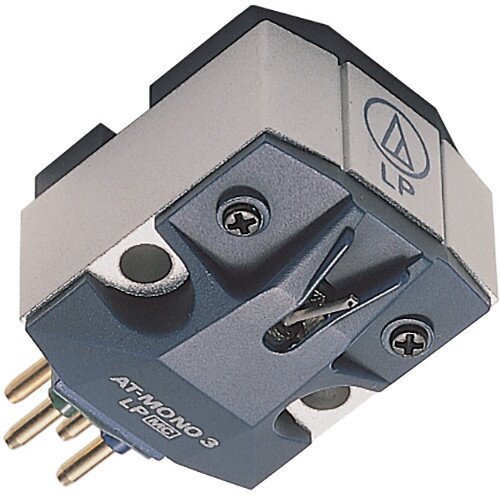

The AT-MONO3/LP is a high-output (1.2 mV) moving coil cartridge designed specifically for use with mono vinyl records.* Due to the horizontal configuration of its PCOCC (Pure Copper by Ohno Continuous Casting) voice coils, the AT-MONO3/LP cartridge only generates electrical signal with horizontal movement, yet it also has appropriate compliance in the vertical direction, making it safe for use with stereo records. The voice coils are wired in series, resulting in one mono signal that is transmitted to the cartridge’s white-blue terminals and red-green terminals in order to feed both inputs of a stereo phono preamp.
The cartridge’s low-mass 0.6 mil conical stylus is mounted on an aluminum cantilever for excellent tracking performance. Because the AT-MONO3/LP does not easily pick up unnecessary strain components from distorted or scratched records, it produces mono audio of a much higher quality than that generated by a stereo cartridge. The cartridge features a strong, rigid body of die-cast aluminum alloy and synthetic resin to eliminate unnecessary vibrations.
|Manufacturer's Warranty||1 Year Limited Warranty|
