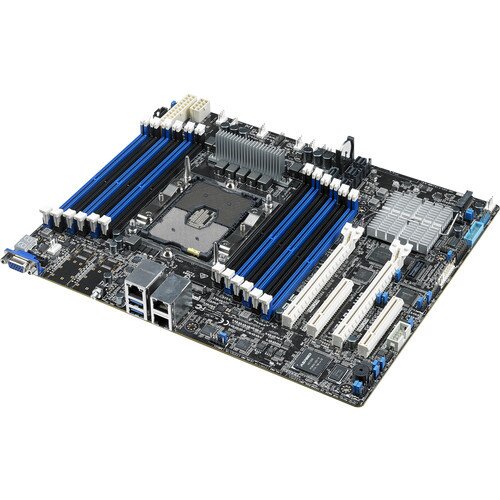

ASUS Z11PA-U12 Intel Xeon Scalable Processor Server Socket LGA3647 ATX Motherboard Price in Pakistan

By: ASUS

Model: Z11PA-U12

Sku: IGWD8Q0RI4

PKR 99,799

& FREE Standard Delivery

Availability: In Stock In Stock New

  • Processor / System Bus: Socket P (LGA 3647), 1st and 2nd Gen Xeon Scalable Processor Family
  • Core Logic: Intel Lewisburg PCH C621
  • Memory: Maximum up to 384GB RDIMM/Maximum up to 768GB LRDIMM/Maximum up to 1536GB LR-DIMM 3DS
  • Form Factor: ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features: ASUS Fan Speed control technology
  • Storage: 13 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
  • Networking: 2 x Intel I210AT + 1 x Mgmt LAN
  • Graphic: Aspeed AST2500 with 64MB VRAM
  • On Board I/O: TPM header, PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), USB 3.0 pin header , Up to 2 Devices, USB 2.0 pin header , Up to 2 Devices, 6 x Fan Header , 4pin (3pin/4pin fan dual support), Serial Port Header, SMBus, Chassis Intruder, 2 x Front LAN LED, M.2 Connector , NGFF Type : 2280/2260/2242, VROC Key Header, Q-Code/Port 80 LED
  • Management Solution: ASMB9-iKVM for KVM-over-Internet
  • Environment: Operation temperature: 10°C ~ 35°C
  • Monitoring: CPU Temperature
Quantity :

Powered by the latest 2nd Gen Intel Xeon Scalable processors

Z11PA-U12 is built on the latest 2nd Gen Intel Xeon Scalable processors to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.33X faster average system-level performance compared to previous-generation processors. Z11PA-U12 offers breakthrough performance with the latest Intel Optane DC persistent memory with an over 88% gain in input/output operations per second (IOPS) compared with the same configuration in SSD. Featuring the latest Intel Deep Learning Boost technology to enhance deep learning capabilities, Z11PA-U12 achieves a 3.1X performance improvement in the ResNet-50 and SSD VGG-16 models, fully demonstrating the inference capability of the new platform.

Increased performance or data redundancy with M.2 SSDs

With two native PCI Express 3.0 bandwidth, M.2 supports up to 16Gb/s data-transfer speeds and up to 2280 NGFF. It is the perfect choice for an operating system drive, making your whole PC work that much faster.

High-speed storage interface support with dual OCuLink for NVMe

Z11PA-U12 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.

Connect up to 13 SATA 6Gb/s storage devices

Z11PA-U12 comes with three mini-SAS HD connectors that support up to 13 SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing.

Comprehensive IT infrastructure management software

Z11PA-U12 features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses:

Quick initialization guidance for faster BIOS tracking enhancement

Z11PA-U12 features quick initialization guidance that enables users to realize the system initialization state in seconds. It provides instant system information including the BMC firmware version, system series number, memory error messages and any unusual diagnostic results for improved and more efficient IT operation.

In the Box

  • ASUS Z11PA-U12 Intel Xeon Scalable Processor Server Socket LGA3647 ATX Motherboard
  • SATA 6Gb/s cable
  • Supporting DVD
  • LGA3647 carrier
  • I/O Shield
