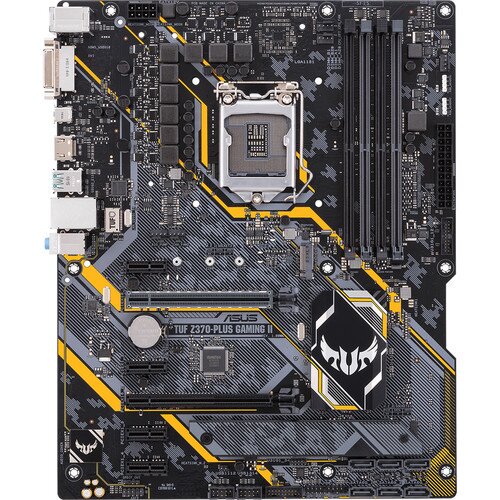

ASUS TUF Z370-PLUS Gaming II Motherboard Price in Pakistan

By: ASUS

Model: TUF Z370-PLUS GAMING II

Sku: 9HF8E0B52C

Availability: Out of stock New

Availability: Out of stock

  • CPU: Intel Socket 1151 9th / 8th Gen Intel Core , Pentium Gold and Celeron Processors
  • Chipset: Intel Z370
  • Memory: 4 x DIMM, Max. 64GB, DDR4
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support
  • Multi-GPU Support: Supports AMD CrossFireX Technology
  • Storage: M.2 Socket 3 2, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), M.2 Socket 3 2, , with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 6 x SATA 6Gb/s port(s), gray
  • LAN: Intel I219V, Gigabit LAN Controller(s)
  • Audio: Realtek ALC887 8-Channel High Definition Audio CODEC
  • Internal I/O Ports: 2 x Aura RGB Strip Header, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode), M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode), 6 x SATA 6Gb/s connector(s), CPU Fan connector(s) ( 4 -pin), CPU OPT Fan connector(s), 2 x Chassis Fan connector(s) (2 x 4 -pin), S/PDIF out header(s), 24-pin EATX Power connector(s), 8-pin ATX 12V Power connector(s), Front panel audio connector(s) (AAFP), Clear CMOS jumper(s), System panel connector, AIO PUMP Header
  • Operating System: Windows 10 64-bit
  • Form Factor: ATX Form Factor
Quantity :

Gaming Audio

Hone your battleskills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets ― Aerial, Soundscape, and Tactical ― for different genres, you'll have a distinct advantage in every game.

SHIELDED AUDIO, SUPERIOR SOUND

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

AUDIO SHIELDING

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

DEDICATED CHANNEL LAYOUTS

Separate layers for left and right channels to preserve the quality of the sensitive audio signals.

TUF GAMING AUDIO COVER

Effective shielding preserves the integrity of audio signals to ensure best quality.

AUDIO ENJOYMENT

Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

Outshine the competition

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Intel Ethernet

TUF Z370-PLUS GAMING II features the very latest Intel Ethernet. Intel's LAN has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

Turbo LAN

Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X — with no expert knowledge. It even includes Game mode to prioritise game-related data transmissions, smoothing network operations every time you play!

Make Your Memory Go Faster

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing DDR4 memory speeds of 4000MHz with all slots populated — and even beyond!

One Click Overclocking

You don't need to be a technical expert to experience exhilarating overclocking performance. TUF Z370-PLUS GAMING II incorporates the OC Tuner feature for efficient operation with precise voltage control and monitoring. OC Tuner takes all the hassle out of complex tuning by overclocking your system with a single click — it couldn't be easier!

Dual Onboard M.2 & M.2 Heatsink

TUF Z370-PLUS GAMING II features dual onboard M.2 slots, both operating at X4 PCI Express 3.0 to provide a scintillating 32Gbps of bandwidth. The primary slot is placed below the CPU socket, making use of chassis airflow to keep drive temperatures under control. The second sits below the Z370 chipset and is covered by a heatsink that reduces drive temps by as much as 25℃, ensuring peak performance under all scenarios.

Optimized Thermal Design

The TUF Z370-PLUS GAMING II 's VRM and inductor array is coupled to a large heatsink that has ample surface area to deal with the thermals of Intel's latest processors.

EAZY PC DIY EXPERIENCE

TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.

TUF PROTECTION

SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

Intel CPU and Chipset features

The Intel Z370 chipset supports 8th Generation Intel Core processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the Z370 provides a maximum of 10 USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z370 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

In the Box

  • ASUS TUF Z370-PLUS Gaming II Motherboard
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • M.2 Screw Package
  • TUF Gaming Sticker
  • TUF Certification card(s)
  • SCD
  • User's manual
