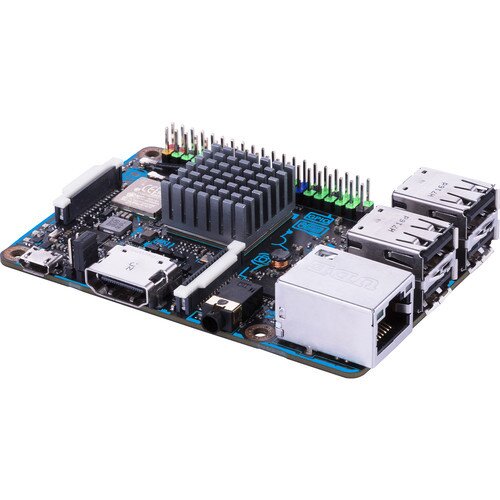

The new and improved Tinker Board S is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.
Onboard 16GB eMMC storage to enhance performance and stability, plus a microSD slot for greater flexibility
With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288 — Tinker Board S offers significantly improved performance versus other popular SBC boards. To provide the flexibility needed for different builds and projects, Tinker Board S features 2GB of LPDDR3 dual-channel memory and is equipped with an onboard 16GB eMMC and SD 3.0 interface that offer significantly faster read and write speeds for the OS, applications and file storage.
Featuring a powerful but energy-efficient design, Tinker Board S supports next-generation graphics and GPU computing API's. Powered by an ARM-based Mali -T760 MP4 GPU, Tinker Board S' GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.
Further improving on key areas found lacking on many SBC boards, Tinker Board S is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module. The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.
Tinker Board S features standard maker connectivity options, including a 40-pin GPIO interface and enhanced I2S interface with Master and Slave modes for improved compatibility. With the GPIO API, Tinker Board S allows for interfacing with a range of inputs from buttons, switches, sensors, LEDs, and much more. Tinker Board S is equipped with one DSI MIPI connection for displays and touchscreens. A secondary CSI MIPI connection for compatible cameras allows for computer vision, and much more.
Careful consideration went into the design and development of the Tinker Board S to ensure that it provides a superior user experience for first-time builders or for seasoned hobbyists. Builders will appreciate the color-coded GPIO header, which makes it easy to recognize respective pin headers.
|Manufacturer's Warranty||1 Year Limited Warranty|
