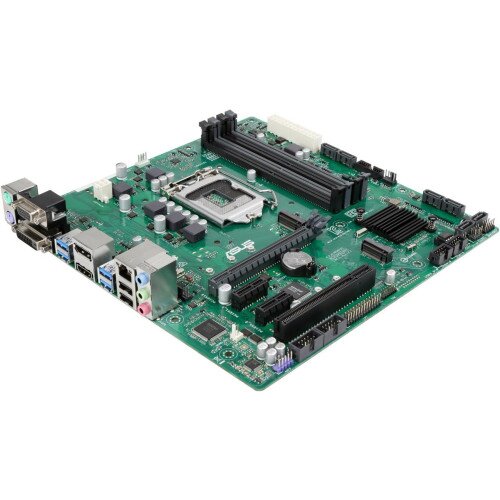

ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard
ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard Display Gallery Item 1
ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard - 2 Display Gallery Item 2
ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard - 3 Display Gallery Item 3
ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard - 4 Display Gallery Item 4
ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard - 5 Display Gallery Item 5

Grab ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard

By: ASUS

Model: PRIME B250M-C

Sku: XCWNJ30JMJ

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0 and a rear USB 3.1 Type C connection
  • 5X Protection III Hardware-level safeguards provide component longevity and reliability
  • FanXpert 2 delivers advanced fan control for dynamic cooling
  • On-board 8-Channel Audio using premium Japanese capacitors provides warm, immersive crystal-clear surround sound
  • Front panel USB 3.0 connectivity for easy access and accelerated data transfers
  • BIOS Value Edit Tool - Customize the BIOS options.
  • BIOS Boot Logo Tool - Brand your builds with a customized boot logo.
  • OEM Activation (OA) Tools - Add or remove the OEM Activation key.
  • Desktop Management Interface (DMI) - Easily add customer information, such as company name, to the BIOS.
  • Intel Management Engine (Intel ME) Driver - Update the Management Engine without flashing the whole BIOS.
  • CPU: Intel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
  • Chipset: Intel B250
  • Memory: 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
  • Graphic: Integrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  • Expansion Slots: 1 x PCIe 3.0/2.0 x16 2 x PCIe 3.0/2.0 x1 1 x PCI
  • LAN: Intel I219V, 1 x Gigabit LAN Controller(s)
  • Audio: Realtek ALC887 8-Channel High Definition Audio CODEC 1 Supports : Jack-detection, Front Panel Jack-retasking
  • USB Ports: Intel B250 Chipset 6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
  • Special Features: ASUS 5X Protection III ASUS SafeSlot Core: Fortified PCIe Slot prevents damage, ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges, ASUS Overvoltage Protection: World-class circuit-protecting power design, ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability, ASUS DIGI+ VRM: 5 Phase digital power design
  • Operating System Support: Windows 10 , 64bit Windows 8.1 , 64bit 2 Windows 7 , 32bit/64bit 2
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

SafeSlot Core

SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, Safeslot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.

LANGuard

ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

Overvoltage Protection

An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

DIGI+ VRM

ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.

Stainless-Steel Back I/O

Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

ESD Guards

ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

Against moisture and corrosion

This innovative moisture-resistant coating provides motherboard protection, and combats the higher levels of humidity that build up in densely-populated environments, such as factories, libraries, data centers and internet cafes. It even minimizes internal corrosion by preventing the adhesion and migration of moisture - prolonging the life of your motherboard.

ASUS Remote Management Tool

The ASUS Remote Management Tool provides routine office PC maintenance, including easy BIOS updates and automatic simultaneous syncing across multiple devices.

Quick BIOS update

Real-time BIOS updates through USB or the hard drive

Easy BIOS setting

Easily customize CPU, fan, or system settings

System monitoring

Instantly monitor system's temperature, power, or fan status

Remote power management

Control wake up/ shut down/ reset/ hibernate modes

Customize DMI value

Retrieve DMI information, and edit DMI string in real time

In the Box

  • ASUS PRIME B250M-C LGA1151 DDR4 DP HDMI DVI VGA M.2 mATX Motherboard
  • I/O Shield
  • 2 x SATA 6Gb/s cable(s)
  • M.2 Screw Package
  • Supporting DVD
  • User´s manual
