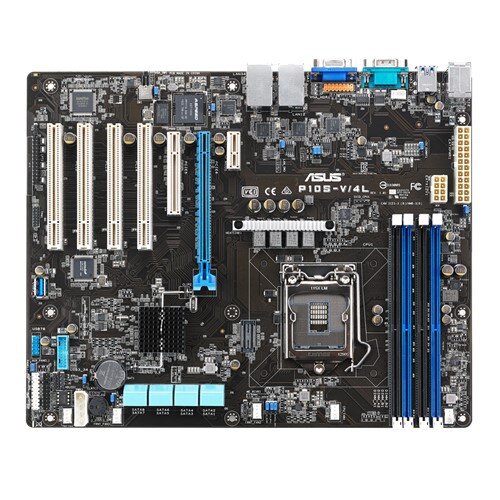

ASUS P10S-V/4L Combat Model with Quad Server LAN Motherboard Price in Pakistan

By: ASUS

Model: P10S-V/4L

Sku: USHKQCOV3C

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: 1 x Socket LGA1151Intel Xeon processor E3-1200 v6 product family
  • Core Logic: Intel C236 Chipset
  • Memory: Capacity Maximum up to 64GB UDIMM
  • Expansion Slots: Total Slot : 6, Slot Location 1 : PCI 32bit/33MHz, Slot Location 2 : PCI 32bit/33MHz, Slot Location 3 : PCI 32bit/33MHz, Slot Location 4 : PCI 32bit/33MHz, Slot Location 5 : PCI-E x8 (Gen3 X4 Link), Slot Location 6 : PCI-E x16 (Gen3 X16 Link) 10, Slot Location 7 : MIO Slot for Audio card
  • Form Factor: ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features: FAN speed control
  • Storage: 8 x SATA3 6Gb/s ports
  • Networking: 4 x Intel I210AT
  • Graphic: Aspeed AST1400 with 64MB VRAM
  • On Board I/O: 1 x TPM header, 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), 1 x USB 3.0 pin header , Up to 2 Devices, 1 x USB 2.0 pin header , Up to 2 Devices, 1 x USB connector*1, 6 x Fan Header , 4pin, 1 x Chassis Intruder, 4 x Front LAN LED, 1 x Device Power Connector*2, 1 x VGA Header, 1 x LPT
  • Management Solution: ASWM Enterprise
  • Environment: Operation temperature: 10℃ ~ 35℃
Quantity :

Advanced I/O Design with Legacy PCI Support

The P10S-V/4L is the latest ASUS UP ATX serverboard, based on Intel Greenlow platform and Intel C236 chipset. It is an attractive entry model, featuring quad server-class Intel Ethernet, native 8 SATA 6G onboard, 2 Gen3 expansion slots to provide advanced I/O design. Moreover, it support up to 4 legacy PCI slots to reserve the usage ability of legacy PCI devices.

Quad Intel I210AT Gigabit Ethernet

The ASUS P10S-V/4L ships with quad server-class Intel Ethernet ports with the I210 controllers, which doubles queues compared to previous-generation Intel controllers. This is better for virtualization applications. In addition, the quad LAN teaming quadruples the network bandwidth and the failover function ensures uninterrupted network connections.

Next-Gen Storage – NVMe Support

Next-Gen Storage technology – NVMe is where the industry is headed. By taking new NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is the fastest internal storage interface today.

High Power Efficiency with Platinum Power Solution

ASUS P10S-V/4L serverboard is designed with the platinum power solution with the hand-chosen components and provide platinum efficiency which is up to 93%. The platinum power solution consists 3 pillars to achieve the 93% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours 105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.

Serviceability – Quick Boot

The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.

Optional PIKE II 3x08 Series SAS 12Gb/s solution

ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

In the Box

  • ASUS P10S-V/4L Combat Model with Quad Server LAN Motherboard
  • 2 x Support CD
  • I/O shield
  • 8 x SATA 6G cables
  • Plate for LGA1151
  • 2 x Support CD
  • I/O shield
  • Plate for LGA1151
