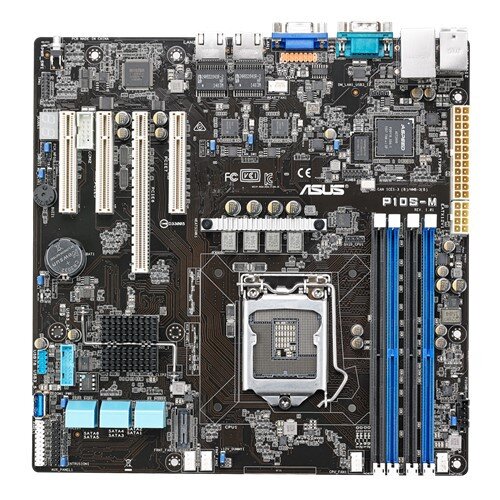

ASUS P10S-M Compact Size with Expandable Motherboard Price in Pakistan

By: ASUS

Model: P10S-M

Sku: H4F2QI8CCY

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: Socket LGA1151, Intel Xeon processor E3-1200 v6 product family
  • Core Logic: Intel C232 Chipset
  • Memory: Capacity Maximum up to 64GB UDIMM
  • Expansion Slots: Total Slot : 4, Slot Location 4 : PCI-E x8 (Gen3 X4 Link), Slot Location 5 : PCI-E x8 (Gen3 X4 Link), Slot Location 6 : PCI-E x16 (Gen3 X8 Link), Auto switch to x4 link if slot 5 is occupied, Slot Location 7 : PCI-E x8 (Gen3 X8 Link)
  • Form Factor: U ATX (9.6"x9.6", 244mm x 244mm)
  • ASUS Features: FAN speed control
  • Storage: 6 x SATA3 6Gb/s ports
  • Networking: 2 x Intel I210AT + 1 x Mgmt LAN
  • Graphic: Aspeed AST2400 with 32MB VRAM
  • On Board I/O: TPM header, PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), Onboard header for optional management card, USB 3.0 pin header , Up to 2 Devices, USB 2.0 pin header , Up to 2 Devices, x USB connector*1, 5 x Fan Header , 4pin, SMBus, Chassis Intruder, 2 x Front LAN LED, Serial Port Header, VGA Header
  • Management Solution: ASWM Enterprise
Quantity :

Micro ATX compact with Multiple Expansions

The ASUS P10S-M is an Intel Greenlow platform server board based on the Intel C232 chipset provides dual server-class Intel Ethernet , native 6 SATA 6G, and 4 PCI Express 3.0 which can fulfill various requirements. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

Next-Gen Storage – NVMe Support

Next-Gen Storage technology – NVMe is where the industry is headed. By taking new NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is the fastest internal storage interface today.

Optional PIKE II 3x08 Series SAS 12Gb/s solution

ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

ASUS Platinum-Grade Power Efficiency

ASUS P10S-M server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 92%. The platinum power solution consists 3 pillars to achieve the 92% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours 105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.

Serviceability – Quick Boot

The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with 3 key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) BMC IP address if ASMB module is mounted on the server and (3) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.

Complete remote server management

The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control and power control, via colorful and informative graphical interface.

In the Box

  • ASUS P10S-M Compact Size with Expandable Motherboard
  • 2 x Support CD
  • I/O shield
  • 6 x SATA 6G cables
  • Plate for LGA1151
  • 2 x Support CD
  • I/O shield
  • Plate for LGA1151
