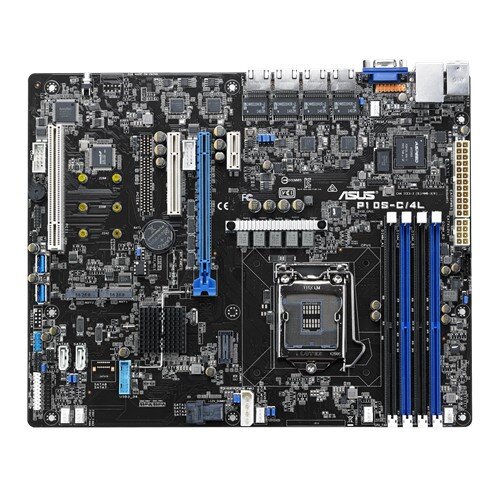

ASUS P10S-C/4L Quad LAN with Platinum Grade Power Saving Technology Motherboard Price in Pakistan

By: ASUS

Model: P10S-C/4L

Sku: KSB4GRTXZB

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: Socket LGA1151
  • Core Logic: Intel C232 Chipset
  • Memory: Maximum up to 64GB UDIMM
  • Expansion Slots: Total Slot : 3Slot Location 1 : PCI 32bit/33MHzSlot Location 5 : PCI-E x8 (Gen3 X8 Link)Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupiedSlot Location 7 : MIO Slot for Audio card
  • Form Factor: ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features: FAN speed control
  • Storage: 6 x SATA3 6Gb/s ports
  • Networking: 4 x Intel I210AT + Mgmt LAN
  • Graphic: Aspeed AST2400 with 32MB VRAM
  • On Board I/O: TPM header, PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), USB 3.0 pin header , Up to 2 Devices, USB 2.0 pin header , Up to 2 Devices, 2 x USB connector*3, 6 x Fan Header , 4pin, SMBus, Chassis Intruder, 4 x Front LAN LED, 2 x Serial Port Header, Device Power Connector*4, VGA Header, 2 x M.2 Connector, Onboard header for optional management card
  • Management Solution: ASWM Enterprise
  • Environment: Operation temperature: 10℃ ~ 35℃
Quantity :

High expandability with PCI-E, PCI, SATA, USB and M.2 support

The ASUS P10S-C/4L is an Intel Greenlow platform server board based on the Intel C232 chipset provides quad server-class Intel Ethernet , native 6 SATA 6G, 2 PCI Express 3.0 slots, dual M.2 sockets, one legacy PCI slot and one MIO slot which can fulfill various customers’ requirements. It suitable for Data center frond-end server, firewall, gateway server, storage server, SMB print/file/mail/exchange server etc.

Dual M.2 Boots I/O Performance & Data Redundancy

In order to bring up better performance or back-up solution for internal OS drive scenario, we design dual M.2 spec on selected server boards. With this design, configuring dual M.2 devices as RAID 0 to boost read performance up to 84% and write performance up to 40% compared to single M.2; moreover, if users require data redundancy of OS drive, RAID 1 will be a good choice with dual M.2 storage devices.

Next-Gen Storage – NVMe Support

Next-Gen Storage technology – NVMe is where the industry is headed. By taking new NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is the fastest internal storage interface today.

High Power Efficiency with Platinum Power Solution

ASUS P10S-C/4L server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 94%. The platinum power solution consists 3 pillars to achieve the 94% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.

Quad Intel I210AT Gigabit Ethernet

The ASUS P10S-C/4L ships with quad server-class Intel Ethernet ports with the I210 controllers, which doubles queues compared to previous-generation Intel controllers. This is better for virtualization applications. In addition, the quad LAN teaming quadruples the network bandwidth and the failover function ensures uninterrupted network connections.

Optional PIKE II 3x08 Series SAS 12Gb/s solution

ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.

Complete remote server management

The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control and power control, via colorful and informative graphical interface.

In the Box

  • ASUS P10S-C/4L Quad LAN with Platinum Grade Power Saving Technology Motherboard
  • 2 x Support CD
  • I/O shield
  • 2 x SATA 6G cables
  • Plate for LGA1151
  • 2 x Support CD
  • I/O shield
  • Plate for LGA1151
