Knowing information is key in any situation. Monitor the status of your system in real-time with a convenient graphical overlay displayed right on screen with OSD Monitor. It allows you to view POST codes in real-time, complete hardware status and even the readout from VGA Hotwire and Subzero Sense, all at a pure hardware level.
Tweak the parameters of your system in real-time with a convenient graphical overlay displayed right on the screen with OSD TweakIt. It provides you with a set of critical and hardware-driven functions so you can tweak your system on-the-fly.
An industry first, ASUS has place Thunderbolt I/O technology onboard its motherboards, and are set to revolutionize the speed at which peripherals and displays operate. Featuring a maximum bi-directional speed of 10 Gbps, Thunderbolt is 2 times faster than USB 3.0 and an incredible 20 times faster than USB 2.0. And with the ability to daisy-chain up to six devices without the need for a hub or switch, that means less overheard for a clutter free computing experience. For example, users can connect multiple native Thunderbolt storage devices, an HD video capture device and even an HD display to a single Thunderbolt chain while maintaining maximum throughput.
Love to overvolt but got mad trimming the tiny variable resistors? With the VGA Hotwire feature, plug the two-wire cable onboard and solder two wires on the VGA's voltage regulator and accurately adjust the voltage, taking your system to the next level while avoiding some risks.
Love overclocking in LN2 mode, but have trouble finding out just how cold your board is? Worry no more, with Subzero Sense you can read the system’s temperature even in its coldest subzero degrees temperature.
Hook up immediate extra connectivity to the ROG motherboard and say so long to physical limitations. The unique Combo attaches to the motherboard near the rear I/O , and comes with one mSATA port supporting Intel Smart Response Technology hybrid storage acceleration with compatible mSATA SSDs, and a dual band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0 card bundled into its mini PCI Express 2.0/USB 2.0 combo port on the opposite side. This way, you can connect extra devices without taking up valuable space on the motherboard, and get the best of both worlds: for better connectivity and expandability without sacrificing essential features.
Monitor the status of your desktop PC and tweak its parameters in real-time via a notebook-just like a race car engineer-with ROG Connect. ROG Connect links your main system to a notebook through a USB cable, allowing you to view real-time POST code and hardware status readouts on your notebook, as well as make on-the-fly parameter adjustments at a purely hardware level.
The Extreme Engine Digi+ II has been upgraded and equipped with the finest Japan-made 10K Black Metallic capacitors, while the digital VRM design allows you to achieve ultimate performance with adjustable CPU and memory power management frequencies. Precise adjustments create greater efficiency, stability, double lifespan and performance for total system control.

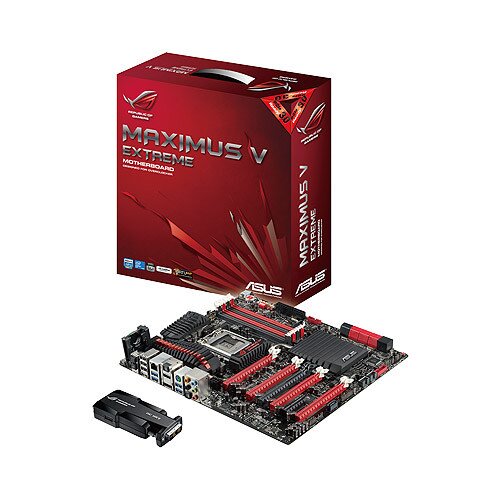

|Model||Maximus V Extreme|
|Socket||Intel Socket 1155|
|Manufacturer's Warranty||3 Year Limited Warranty|
