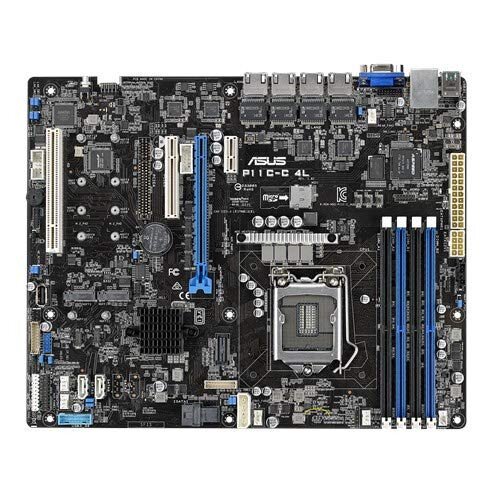

ASUS Intel Xeon E ATX Server Motherboard Price in Pakistan

By: ASUS

Model: P11C-C/4L

Sku: Y3FD1ZKM4R

Availability: Out of stock New

Availability: Out of stock

  • Processor / System Bus: Socket LGA1151, Intel Xeon processor E-2100 family, Intel Xeon processor E-2200 family,
  • Core Logic: Intel C242 Chipset
  • Memory: Total Slots 4 (2-channel), Capacity Maximum up to 128GB UDIMM
  • Form Factor: ATX (12"x9.6", 305mm x 244mm)
  • ASUS Features: FAN speed control, Rack Ready (Rack and Pedestal dual use), ASUS Control Center
  • Storage: SATA Controller , Intel C242 Chipset
  • Networking: 4 x Intel I210AT + Mgmt LAN
  • Graphic, Aspeed AST2500 with 32MB VRAM
  • On Board I/O: TPM header, PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector), COM port, USB 3.0 pin header, USB 2.0 pin header, USB connector*2, 6 x Fan Header , 4pin, SMBus, Chassis Intruder, 4 x Front LAN LED, 2 x Serial Port Header, VGA Header, 2 x M.2 Connector, Onboard header for optional management card
  • Management Solution: ASUS Control CenterOptional ASMB9-iKVM for KVM-over-Internet
  • Monitoring: CPU Temperature, Fan RPM
Quantity :

Industry-standard ATX server board with multiple expandability options

P11C-C/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe, and one PCI slot for legacy devices.

Dual M.2 for up to 32Gbps performance and data redundancy

P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

NVMe high-speed storage interface

P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption and faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices.

High-speed mini-SAS HD connections

P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-C/4L, making it a great upgrade option.

Quad Intel I210AT Gigabit Ethernet

P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

Comprehensive IT infrastructure management

P11C-C/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

Enhanced serviceability

With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance and deployment for diverse applications.

In the Box

  • ASUS Intel Xeon E ATX Server Motherboard
  • 2 x Support CD
  • I/O shield
  • 6 x SATA 6G cables
  • Plate for LGA1151
  • 2 x Support CD
  • I/O shield
  • Plate for LGA1151
