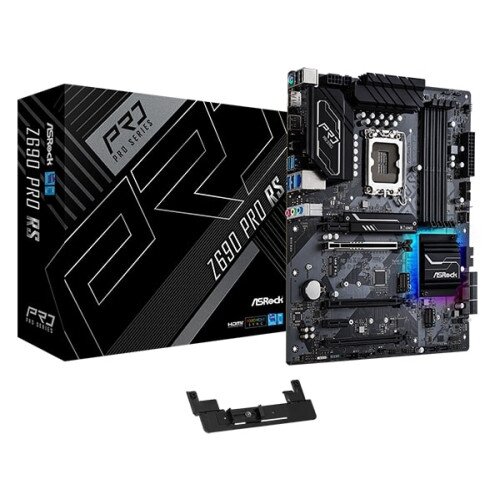

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
13 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking Thus, it's able to support the latest memory modules with most extreme memory performance
2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes Delivering lower temperature and higher energy efficiency for overclocking.
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue
- Static Noise Suppression
- Echo Cancellation
- Lateral Sound Cancellation
- Voice Stabilizer
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on any devices
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Base Frequency Boost (BFB) Technology
BFB Technology allow the use of increasing TDP to enjoy the base frequency boost with the hidden power of processors with users' non K series CPUs and ASRock’s selected 600 series motherboards. While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Unique Feature
- ASRock USB 3.2 Gen2 : ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s), ASRock Super Alloy: Premium Power Choke, 50A Dr.MOS, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, 2.5G LAN, ASRock Steel Slot, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
CPU
- Supports 12th Gen Intel Core Processors (LGA1700), Digi Power design, 13 Power Phase design, Supports Intel Hybrid Technology, Supports Intel Turbo Boost Max 3.0 Technology
Memory
- Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC), Supports ECC UDIMM memory modules (operate in non-ECC mode), Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7 Support, CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
Graphics
- Intel Xe Graphics Architecture (Gen 12), Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers, Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) 60Hz, Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) 60Hz / 5K (5120x3200) 120Hz, Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Supports Surge Protection, Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Slots
- CPU:1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode, Chipset:1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 1 x PCIe 3.0 x16 Slot (PCIE5), supports x4 mode, 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4), 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT), Supports AMD CrossFire
Storage
- CPU:1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, Chipset:1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes, 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode, 8 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Connector
- 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
Rear Panel I/O
- 3 x Antenna Mounting Points, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection), 2 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
- Software: ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, UEFI : ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI,
Hardware Monitor
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans, Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans, Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans, Voltage monitoring: CPU Vcore, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.05V PCH, +0.82V PCH, +12V, +5V, +3.3V
Form Factorr
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, Solid Capacitor design, 2oz Copper PCB
