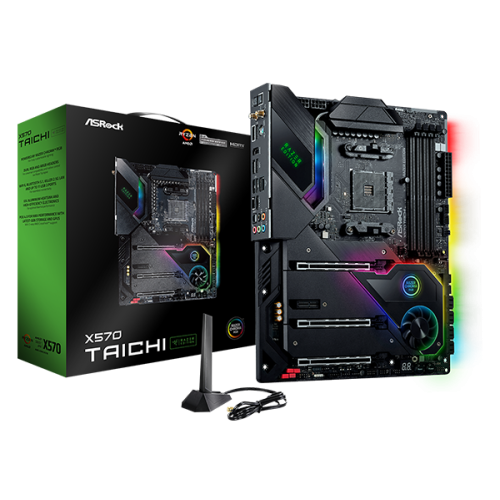

ASRock X570 Taichi Razer Edition Motherboard Price in Pakistan

By: ASRock

Model: X570 Taichi Razer Edition

Sku: K0NIHAM9Q5

PKR 132,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
  • 16 Power Phase Design, Digi Power, Dr. MOS
  • Supports DDR4 4666+ (OC)
  • 3 PCIe 4.0 x16, 1 PCIe 4.0 x1
  • Graphics Output Options: HDMI
  • AMD 3-Way CrossFireX, NVIDIA SLI
  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 2 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
  • Killer E3100G 2.5G LAN, Killer AX1650x Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1
  • Supports Razer Chroma
  • Unique Feature : ASRock USB 3.2 Gen2: ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s), ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s), ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)/ ASRock Super Alloy: XXL Aluminum Alloy Heatsink, Premium 60A Power Choke, 50A Dr.MOS, Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke), Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors), I/O Armor, Matte Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, Killer 2.5G LAN, Killer 802.11ax WiFi, Killer DoubleShot Pro, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4 & SATA3), ASRock Ultra USB Power, ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
  • CPU :Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, Intersil Digital PWM, 16 Power Phase design
  • Chipset :AMD X570
  • Memory : Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Vermeer) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Cezanne) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Renoir) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory, Max. capacity of system memory: 128GB, Supports Extreme Memory Profile (XMP) memory modules, 15μ Gold Contact in DIMM Slots
  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, DirectX 12, Pixel Shader 5.0, Shared memory default 2GB. Max Shared memory supports up to 16GB, Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required), Supports HDR (High Dynamic Range) with HDMI 2.1, Supports HDCP 2.3 with HDMI 2.1 Port, Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port, Supports Microsoft PlayReady
  • Audio :7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, WIMA Audio Capacitors (For Front Outputs), ESS SABRE9218 DAC for Front Panel Audio (130dB SNR), Pure Power-In, Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Gold Audio Jacks, 15μ Gold Audio Connector, Nahimic Audio
  • LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s), Supports Killer LAN Software, Supports Killer DoubleShot Pro, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
  • Wireless LAN :Killer AX1650x 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax, Supports Dual-Band (2.4/5 GHz), Supports Killer WiFi6 802.11ax (2.4Gbps), 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.1 + High speed class II, Supports MU-MIMO, Supports Killer LAN Software, Supports Killer DoubleShot Pro
  • Slots: AMD Ryzen series CPUs (Vermeer): 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))/ AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))/ AMD Ryzen series APUs (Cezanne and Renoir): 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))/ AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))/ AMD Ryzen series APUs (Picasso): PCI Express 3.0 x16 Slot (x8 (PCIE1)) AMD X570 Chipset, PCI Express 4.0 x16 Slot (x4 (PCIE4)), PCI Express 4.0 x1 Slot, Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX, Supports NVIDIA Quad SLI and SLI, Supports NVIDIA NVLink with dual NVIDIA GeForce RTX series graphics cards, Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O), 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage : 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer and Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso), Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso), Hyper M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso)
  • Connector: SPI TPM Header, 2 x RGB LED Headers, Power LED and Speaker Header, 2 x Addressable LED Headers, CPU Fan Connector (4-pin), CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), Front Panel Audio Connector (15μ Gold Audio Connector), Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection), Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), Dr. Debug with LED, Power Button with LED, Reset Button with LED, Clear CMOS Button
  • Rear Panel I/O : 2 x Antenna Ports, PS/2 Mouse/Keyboard Port, HDMI Port, Optical SPDIF Out Port, USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), 4 x USB 3.2 Gen1 Ports (Supports ESD Protection), 2 x USB 2.0 Ports (Supports ESD Protection), RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), Clear CMOS Button, BIOS Flashback Button, HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
  • Software and UEFI : Software ASRock Motherboard Utility (A-Tuning), ASRock Killer LAN Software, Razer Synapse 3/ UEFI ASRock Full HD UEFI, ASRock Instant Flash
  • Support CD : Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Hardware Monitor : Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans, Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans, Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans, Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans, Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
  • Form Factor : ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB
  • OS :Microsoft Windows 10 64-bit / 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
Quantity :

Surround Sound

Feel the immersion, feel the sound as if you were in the heart of the action

Device Compatibility

Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them.

Sound Tracker

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming.

Volume Stabilizer

Nahimic dynamically clear the sound and remove interference noise and lower the voice variation.

Night Mode

Night Mode is a smart volume reduction, keeping the media content intelligible.

PCIe 4.0 For Everyone

The AMD B550 chipset makes PCIe possible for anyone who wants higher performance, bandwidth and speed.

PCIe 4.0 Clock Generator

PCIe 4.0 external clock generator provides better PCIe 4.0 overclocking performance.

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the various benefits including extra anchor points, stronger latch, ensure signal stability and make sure heavy graphics cards to be well-installed.

Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.

Supports PCIe 4.0 X8/X8 Mode

This motherboard supports the multiple GPU technology that supports PCIe 4.0 x8/x8 mode. Boost the extreme performance for the games that is Microsoft DirectX 12 or Vulkan ready.

16 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. It offers unmatched overclocking capabilities and enhanced performance for advanced gamers.

Premium 60A Power Choke

ASRock’s premium 60A power chokes make the saturation current up to three times better, providing enhanced Vcore voltage to the motherboard.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications, providing improved thermal result and superior performance.

Nichicon 12K Black Caps

Supreme 12K black capacitors with lifespans of at least 12,000 hours, offering 20% longer lifespans and provide more stability and reliability.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Hi-Density Power Connector

Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.

In the Box

  • ASRock X570 Taichi Razer Edition Motherboard
  • Quick Installation Guide, Support CD
  • 4 x SATA Data Cables
  • ASRock WiFi 2.4/5 GHz Antenna
  • ASRock Screwdriver
  • 3 x Screws for M.2 Sockets
  • 2 x Standoffs for M.2 Sockets
