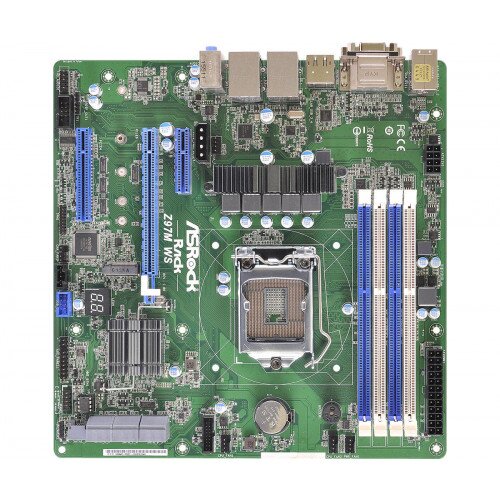

ASRock Rack Z97M WS Motherboard
ASRock Rack Z97M WS Motherboard Display Gallery Item 1
ASRock Rack Z97M WS Motherboard - 2 Display Gallery Item 2
ASRock Rack Z97M WS Motherboard - 3 Display Gallery Item 3

ASRock Rack Z97M WS Motherboard Price in Pakistan

By: ASRock Rack

Model: Z97M WS

Sku: 7NU1OLR9K0

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Micro ATX
  • Single socket H3 (LGA 1150)
  • Supports 4th Gen & 5th Generation Intel Core Processors (Socket 1150)
  • 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB
  • 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 2.0 x4, 1 x M.2 slot
  • 6 x SATA3 by Intel Z97, support RAID 0,1,5,10
  • Supports SATA Express (Port 5)
  • Intel i210 + i217LM, support Dual GLAN with Intel vPro technology
  • 4 x USB 3.0 ports (2 rear + 2 via header )
  • 6 x USB 2.0 ports (4 rear + 2 via header )
Stock Request Notify When Available

MB Physical Status

  • Form Factor: Micro ATX 9.6" x9.6"

Processor System

  • CPU: Supports 5th/4th Generation Intel Core i7/i5/i3/Pentium /Celeron Processors (Socket 1150) , Supports Intel K-Series CPU , Supports Intel Turbo Boost 2.0 Technology
  • Chipset: Intel Z97
  • Socket: Single socket H3 (LGA1150)

System Memory

  • Capacity: 4 x 240-pin DDR3 DIMM slots
  • Type: Dual Channel DDR3 1600/1333 UDIMM
  • Voltage: 1.5V, 1.35V

Storage

  • SATA Controller: Intel Z97 : 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug

Ethernet

  • Interface: Gigabit LAN 10/100/1000 Mb/s

Graphics

  • Controller:Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated

Internal Connector

  • COM Header: 1 (COM1)
  • Power LED Header: 1
  • Auxiliary Panel Header: 1 (include chassis intrusion, front LAN LED)
  • TPM Header: 1
  • Fan Header: 5 x 4pin
  • ATX Power: 1 (24-pin) + 1 (8-pin)
  • USB 3.1 (Gen1) Header: 1 (each supports 2 USB 3.0)
  • USB 2.0 Header: 1 (each supports 2 USB 2.0)

Support OS

  • OS: Microsoft Windows / Windows 7 ( 32 / 64 bit)/ Windows 8 ( 32 / 64 bit)/ Windows 8.1 ( 32 / 64 bit)/ Windows 10 (64 bit)

In the Box

  • ASRock Rack Z97M WS Motherboard
