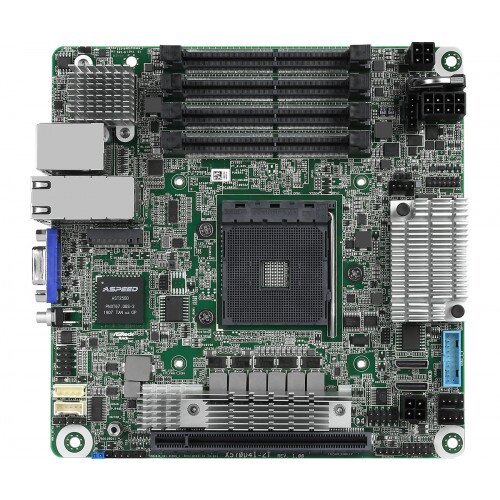

ASRock Rack X570D4I-2T Motherboard
ASRock Rack X570D4I-2T Motherboard Display Gallery Item 1
ASRock Rack X570D4I-2T Motherboard - 2 Display Gallery Item 2
ASRock Rack X570D4I-2T Motherboard - 3 Display Gallery Item 3
ASRock Rack X570D4I-2T Motherboard - 4 Display Gallery Item 4

ASRock Rack X570D4I-2T Motherboard Price in Pakistan

By: ASRock Rack

Model: X570D4I-2T

Sku: 2IPCZ1I8Y6

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Supports AMD Ryzen 3rd Generation Series Processors(Max 105W))
  • Supports 4x DDR4 ECC and non-ECC SO DIMM, max. 64 GB
  • Supports up 8 x SATA3 by OCulink and 1x M.2 ports
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports 1x PCIe Gen4x16 link (Matisse)
  • Supports 2x 10GLAN Intel X550-AT2
Stock Request Notify When Available

MB Physical Status

  • Form Factor:mini-ITX

Processor System

  • CPU: AMD Ryzen™ 3rd Generation Series Processors(Max 105W)
  • Socket: AM4 PGA 1331

System Memory

  • Capacity: 4 x DDR4 SO DIMM slots
  • Type: Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM
  • Voltage: 1.2V

Storage

  • SATA Controller: AMD X570:8 x SATA3 by OCulink
  • M.2 slot: 2 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)*

Ethernet

  • Interface: 10000/1000 /100 /10 Mbps
  • LAN Controller: 2 x RJ45 10GLAN by Intel® X550-AT2 / / Supports Wake-On-LAN / Supports PXE

Management

  • BMC Controller: ASPEED AST2500
  • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN

Graphics

  • Controller: ASPEED AST2500
  • VRAM: DDR4 256MB

Internal Connector

  • COM Header: 1
  • SATA DOM: 0
  • M.2: 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)
  • OCuLink: 2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each)
  • Auxiliary Panel Header: 1 (include Caseopen,sys_fault_LED, 2FLANLED)
  • TPM Header: 1(13pin)
  • IPMB Header: 1
  • Buzzer: N/A
  • Fan Header: 3(4-pin Fan header)
  • USB 3.1 (Gen1) Header: 1 (support 2 USB 3.0)
  • USB 2.0 Header: N/A
  • Front Panel: 1 (RST, PWRBTN, HDDLED, PWRLED)
  • Speaker Header: 1(4pin)
  • SMBUS from BMC: 1
  • Power Connector: 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
  • ME/SPS Recovery: N/A
  • Clear CMOS: 1
  • PSU SMB Header: 1

In the Box

  • ASRock Rack X570D4I-2T Motherboard
