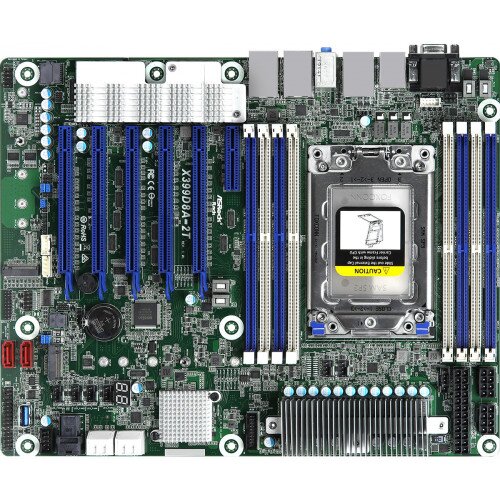

ASRock Rack X399D8A-2T Motherboard
ASRock Rack X399D8A-2T Motherboard Display Gallery Item 1
ASRock Rack X399D8A-2T Motherboard - 2 Display Gallery Item 2
ASRock Rack X399D8A-2T Motherboard - 3 Display Gallery Item 3
ASRock Rack X399D8A-2T Motherboard - 4 Display Gallery Item 4

ASRock Rack X399D8A-2T Motherboard Price in Pakistan

By: ASRock Rack

Model: X399D8A-2T

Sku: 2CHFQW9QDO

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  • Support quad channel DDR4 total 8 DIMM slots
  • Support 8x SATA 6Gb/s by AMD X399 and 2x SATA 6Gb/s by Asmedia 1061
  • Support 2x M.2 (PCIe3.0 x4) up to 22110 form factor
  • Support 3x PCIe 3.0 x16、2x PCIe 3.0 x8
  • Support Dual 10GbE by Intel X550-AT2
Stock Request Notify When Available

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Supports AMD Ryzen Threadripper Processors
  • Socket: AMD Socket TR4 4094P
  • Chipset: AMD X399

System Memory

  • Capacity: 8 x 288-pin DDR4 DIMM slots
  • Type: Quad Channel Memory Technology
  • Voltage: 1.2V

Expansion Slot

  • PCIe 3.0 x 16: 5 slots Slot2: Gen3 x16 link, auto switch to x8 link if Slot3 is occupied / Slot3: Gen3 x8 link / Slot4: Gen3 x16 link, auto switch to x8 link if Slot5 is occupied / Slot5: Gen3 x8 link / Slot6: Gen3 x16 link
  • PCIe 2.0 x 4: Slot7: Gen3 x4 link

Storage

  • SATA Controller: X399: 8x SATA 6Gb/s; 2x SATA DOM, 4 via mini-SAS HD, 2x SATA 7-pin (one shared with M.2)

Ethernet

  • Interfac: 10Gbps/1000 Mbps

Management

  • BMC Controller: ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support

Graphics

  • Controller: ASPEED AST2500
  • VRAM: DDR4 4GB

Internal Connector

  • COM Header: 1
  • SATA DOM 2
  • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, system fault LED, and front LAN LED)
  • TR1 Header: 1
  • TPM Header: 1
  • IPMB Header: 1
  • VGA Header: 1
  • Buzze: 1
  • Fan Header: 6 x 6-pin Fans (1CPU/5 system)
  • ATX Power: 1x (24-pin) + 1x (8-pin) + 1x (8-pin)
  • USB 3.1 (Gen1) Header: 1 ( support 2 USB3.0)
  • USB 2.0 Header : 1 ( support 2 USB2.0)
  • Type A USB 3.1 (Gen1) Port : 1
  • PWR SMB Header: 2
  • NMI Button: 1
  • Front Panel: 1
  • Speaker Header: 1(4-pin)
  • BMC_SMB Header: 1
  • SGPIO Header: 2
  • PMBUS Mode Jumpers: 1
  • ME/SPS Recovery: N/A
  • Clear CMOS: 1 (short pin)

In the Box

  • ASRock Rack X399D8A-2T Motherboard
