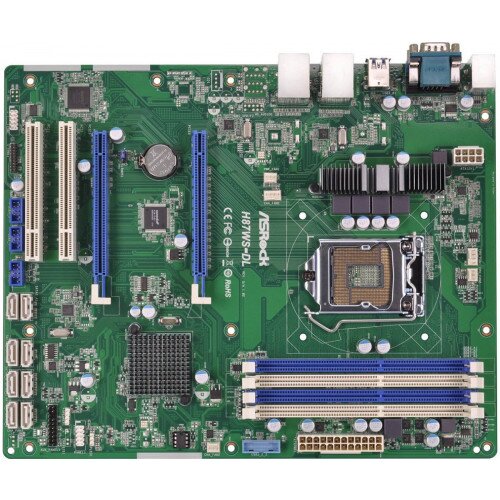

ASRock Rack H87WS-DL Motherboard
ASRock Rack H87WS-DL Motherboard Display Gallery Item 1
ASRock Rack H87WS-DL Motherboard - 2 Display Gallery Item 2

ASRock Rack H87WS-DL Motherboard Price in Pakistan

By: ASRock Rack

Model: H87WS-DL

Sku: WSUB87O159

Be the first to review this product

Sign up for price alert

PKR 53,299

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • ATX
  • Single socket H3 (LGA 1150)
  • Supports New 4th and 4th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
  • 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB
  • 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCI
  • 6 x SATA3 by Intel H87, support RAID 0,1,5,10
  • 2 x SATA3 by ASMedia 1061
  • 2 x Realtek 8111E VL, support Dual GLAN
  • 4 x USB 3.0 ports (2 rear + 2 via header )
  • 10 x USB 2.0 ports (4 rear + 6 via header )
Quantity :

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Supports New 4th and 4th Generation Intel Core i7/i5/i3/Pentium /Celeron Processors (Socket 1150) / Supports Intel K-Series CPU , Supports Hyper-Threading Technology , Supports Intel Turbo Boost 2.0 Technology
  • Chipset: Intel H87
  • Socket: Single socket H3 (LGA1150)

System Memory

  • Capacity: 4 x 240-pin DDR3 DIMM slots
  • Type: Dual Channel DDR3 1600/1333 UDIMM & ECC UDIMM
  • Voltage: 1.5V, 1.35V

Storage

  • SATA Controller: Intel H87 : 6 x SATA3 6.0 Gb/s, support RAID 0,1,5,10

Ethernet

  • Interface: Gigabit LAN 10/100/1000 Mb/s

Graphics

  • Controller:Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated
  • VRAM: Max. shared memory 1760MB

Internal Connector

  • COM Header: 1 (COM1)
  • Power LED Header: 1
  • Auxiliary Panel Header: 1 (include chassis intrusion, front LAN LED)
  • TPM Header: 1
  • Fan Header: 6 (2 x 4-pin, 4 x 3-pin)
  • ATX Power: 1 (24-pin) + 1 (8-pin)
  • USB 3.1 (Gen1) Header: 1 (each supports 2 USB 3.0)
  • USB 2.0 Header: 3 (each supports 2 USB 2.0)

Support OS

  • OS: Microsoft Windows 10 64-bit / 8 / 8 64-bit / 7 / 7 64-bit

In the Box

  • ASRock Rack H87WS-DL Motherboard
