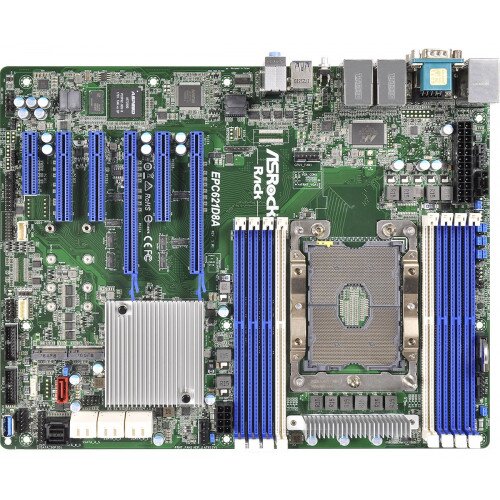

ASRock Rack EPC621D8A Motherboard Price in Pakistan

By: ASRock Rack

Model: EPC621D8A

Sku: 3E6OT5DMVH

PKR 90,299

& FREE Standard Delivery

Availability: In Stock In Stock New

  • ATX
  • Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  • Supports Six Channel DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
  • Supports 13 x SATA3 6.0 Gb/s by Intel C621 (including 1x SATA DOM ports and 2x M.2 ports)
  • Supports 2 PCIe3.0x 16, 3 PCIe 3.0x8, 1 PCIe 3.0 x4 (share information mark in below table)
Quantity :

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  • Socket: Single Socket P, LGA3647
  • Chipset: Intel C621

System Memory

  • Capacity: 8 x 288-pin DDR4 DIMM slots
  • Type: Six Channel memory technology
  • Voltage: 1.2V
  • Storage

    • SATA Controller: Intel C621 : 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports)

    Ethernet

    • Interface: 1000 Mbps (1GbE)

    Management

    • BMC Controller: ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with ikvm、vMedia support
    • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management GLAN

    Graphics

    • Controller: ASPEED AST2500
    • VRAM: DDR4 256MB

    Internal Connector

    • SATA DOM: 1
    • M.2: 2 (up to 2280, SATA and PCIe x1)
    • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED)
    • TPM Header: 1
    • IPMB Header: 1
    • Buzzer: 1
    • Fan Header: 1 x CPU Fan, 4 x system Fan (3 front, 1 rear)
    • ATX Power: 1 (24-pin) + 1 (8-pin)
    • USB 3.1 (Gen1) Header: 2 (support 4 ports USB 3.0)
    • Type A USB 3.1 (Gen1) Port: 1

    Support OS

    • OS: Microsoft Windows (Server OS) / Server 2012 R2 (64 bit) / Server 2016 (64 bit)

In the Box

  • ASRock Rack EPC621D8A Motherboard
