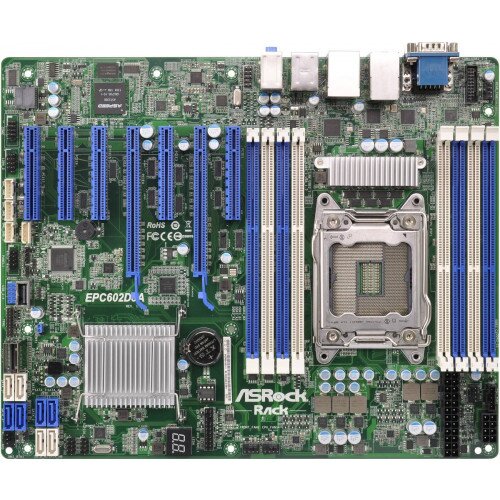

ASRock Rack EPC602D8A Motherboard
ASRock Rack EPC602D8A Motherboard Display Gallery Item 1
ASRock Rack EPC602D8A Motherboard - 2 Display Gallery Item 2

ASRock Rack EPC602D8A Motherboard Price in Pakistan

By: ASRock Rack

Model: EPC602D8A

Sku: QYA99ALINU

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Supports Single Intel LGA 2011, Supports Intel Xeon Processor E5-1600/2600/4600 & v2 Series
  • 8 x DIMM DDR3 1866/1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 256GB
  • Intel C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s(4 ports from mini SAS port)
  • Marvell SE9172: 2 x SATA3 6.0 Gb/s
  • 2 x PCIE3.0 x16, 4 x PCIE3.0 x8, 1 x PCIE2.0 x8
  • Intel i210 support Dual GLAN with teaming function
  • ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
  • Support Audio 3 Jack, ALC892
Stock Request Notify When Available

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Intel Xeon processor E5-1600/2600/4600 & v2 series
  • Socket: Single Socket R (LGA2011)
  • Chipset: Intel C602

System Memory

  • Capacity: 8x 240-pin DDR3 DIMM slots
  • Type: Quad Channel DDR3 memory technology
  • Voltage: 1.5V, 1.35V

Storage

  • SATA Controller: Intel C602 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s support RAID 0, 1, 5, 10; Intel SCU: 1 mini SAS connector(4 x SATA2

Ethernet

  • Interface: Gigabit LAN 10/100/1000 Mb/s

Management

  • BMC Controller: ASPEED AST2300
  • IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management LAN

Graphics

  • Controller: ASPEED AST2300
  • VRAM: DDR3 16MB

Internal Connector

  • SPDIF Header: 1, COM Header: 1 (COM2), Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED), TPM Header: 1, Thermal Sensor Header: 1, IPMB Header: 1, Buzzer: 1, Fan Header: 5 x 4-pin, ATX Power: 1 (24-pin) + 1 (8-pin), USB 3.1 (Gen1) Header: 1 (each support 2 USB 3.0), USB 2.0 Header: 1 (each support 2 USB 2.0), Type A USB 2.0 Port: 1, 1394 Header: 1, Front Panel: 1, Front Audio Panel: 1, Speaker Header: 1, Dr. Debug with LED: 1

Support OS

  • OS: Microsot Windows / Windows 7 ( 32 / 64 bit) / Windows 8 ( 32 / 64 bit)/ Windows 8.1 (32 / 64 bit)/ Windows 10 (64 bit)/ Server 2008 R2 SP1 (64 bit)/ Server 2012 (64 bit)/ Server 2012 R2 (64 bit)/ Server 2016 (64 bit)

In the Box

  • ASRock Rack EPC602D8A Motherboard
