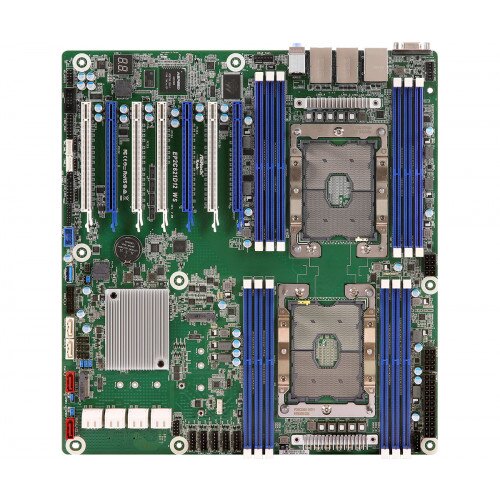

ASRock Rack EP2C621D12 WS Motherboard Price in Pakistan

By: ASRock Rack

Model: EP2C621D12 WS

Sku: XNYS898MX0

Availability: Out of stock New

Availability: Out of stock

  • EEB 12'' x 13''
  • Supports Dual Sockep P, 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
  • Supports DDR4 2666/2400/2133 R DIMM & LR DIMM, 12 x DIMM slots
  • Supports 14 x SATA3 6.0 Gb/s by INTEL C621(including 2x SATA DOM ports and 2x M.2 ports)
  • Supports 7x PCIe3.0x16 (PCIE1: x8, PCIE2/PCIE3/PCIE4/PCIE5: x16, PCIE6/PCIE7: x16/x0 or x8/x8)
Quantity :

MB Physical Status

  • Form Factor: EEB

Processor System

  • CPU: Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors , Chipset: Intel C621

System Memory

  • Capacity: 12 x 288-pin DDR4 DIMM slots , Type: 6 Channel memory technology , Voltage: 1.2V

Storage

  • SATA Controller: Intel C621: 14x SATA3 (including 2 SATA DOM ports and 2 M.2 ports)

Ethernet

  • Interface: Gigabit LAN

Graphics

  • Controller: ASPEED AST2500

Internal Connector

  • COM Header: 1
  • SATA DOM: 2 (SSATA)
  • M.2: 2 (M2_1: support PCIE(x4), from CPU1) & SATA3 6.0Gb/s, form factor: 2230, 2242, 2260, 2280), M2_2: support PCIE(x4) from PCH & SATA3 6.0 Gb/s form factor: 2230, 2242, 2260, 2280)
  • Front Lan LED Connector: 1
  • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED)
  • TPM Header: 1
  • IPMB Header: 1
  • VGA Header: 1
  • Fan Header: 7 Fans(CPU1/CPU2/4Front/1Rear))
  • ATX Power: 1 (24-pin) + 1 (8-pin) + 1 (8-pin)
  • USB 3.1 (Gen1) Header: 1 ( support 2 ports USB 3.0)
  • USB 2.0 Header: 1 ( support 2 USB 2.0)
  • Type A USB 3.1 (Gen1) Port: 1
  • PWR SMB Header: 1
  • NMI Header: 1
  • Front Panel: 1
  • Front Audio Panel: 1
  • Speaker Header: 1(4pin)
  • BMC_SMB Header: 1
  • SGPIO Header: 1
  • SATA RAID KEY: 1
  • ME/SPS Recovery: 1
  • Clear CMOS: 1
  • PSU SMB Header: 1

In the Box

  • ASRock Rack EP2C621D12 WS Motherboard
