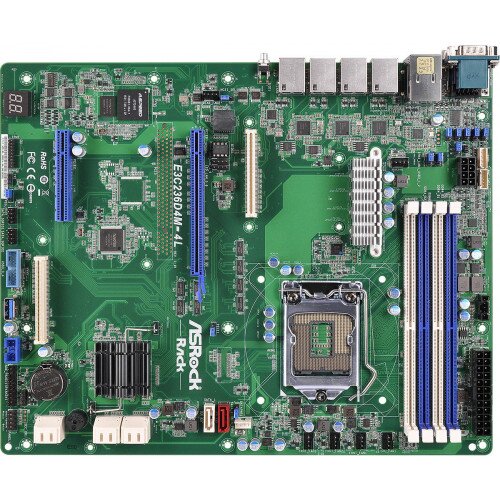

ASRock Rack E3C236D4M-4L Motherboard
ASRock Rack E3C236D4M-4L Motherboard Display Gallery Item 1
ASRock Rack E3C236D4M-4L Motherboard - 2 Display Gallery Item 2
ASRock Rack E3C236D4M-4L Motherboard - 3 Display Gallery Item 3

ASRock Rack E3C236D4M-4L Motherboard Price in Pakistan

By: ASRock Rack

Model: E3C236D4M-4L

Sku: M30AIT5YXT

Be the first to review this product

Sign up for price alert

PKR 72,299

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Supports Intel Xeon E3-1200 v5/v6 Series Processors
  • Supports Dual channel DDR4 2133/1866 ECC and U DIMM max 64 GB
  • Support 8 SATA3 by Intel C236
  • Supports 1x PCIe 3.0 x16, 1x PCIe 3.0 x4
  • Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
  • Supports 4 GLAN by Intel i210 3+ i219 1
Quantity :

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Intel Xeon E3-1200 v5/v6 Series Processors
  • Chipset: Intel C236

System Memory

  • Capacity: 4 x DDR4 DIMM slots
  • Type: Dual Channel DDR4 memory technology
  • Voltage: 1.2v

Storage

  • SATA Controller: C236: 8x SATA3 6Gb/s (1 port support SATA DOM), support RAID 0,1,5,10

Ethernet

  • Interface: 10000/1000 /100 /10 Mbps

Graphics

  • Controller: ASPEED AST2400
  • VRAM: DDR3 16MB

Internal Connector

  • SATA DOM: 1
  • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
  • TPM Header: 1
  • IPMB Header: 1
  • Buzzer: 1
  • Fan Header: 6 (1CPU/3Front/2Rear)
  • ATX Power: 1x (24-pin) + 1x (8-pin)
  • USB 3.1 (Gen1) Header: 1 ( support 2 USB 3.0)
  • USB 2.0 Header: 1 ( support 2 USB 2.0)
  • Type A USB 3.1 (Gen1) Port: 1

Support OS

  • OS: Microsoft Windows / Server 2008 R2 SP1 (64 bit) / Server 2012 (64 bit) / Server 2012 R2 (64 bit)

In the Box

  • ASRock Rack E3C236D4M-4L Motherboard
