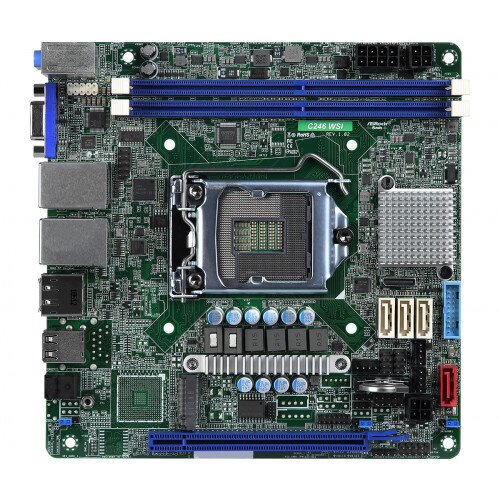

ASRock Rack C246 WSI Motherboard
ASRock Rack C246 WSI Motherboard Display Gallery Item 1
ASRock Rack C246 WSI Motherboard - 2 Display Gallery Item 2
ASRock Rack C246 WSI Motherboard - 3 Display Gallery Item 3

ASRock Rack C246 WSI Motherboard Price in Pakistan

By: ASRock Rack

Model: C246 WSI

Sku: 4YVOCS4F54

Be the first to review this product

Sign up for price alert

PKR 69,999

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Supports Intel Xeon E-2100 Processors
  • Supports Dual channel DDR4 2666/2400 ECC and non-ECC U DIMM max 32 GB
  • 4 SATA3 (1 SATA DOM included), 1 OCuLink connector with 4 SATA ports
  • Supports 1x PCIe 3.0 x16, 1 x M.2
  • Supports Intel I210& Intel i219LM
Quantity :

MB Physical Status

  • Form Factor: mini-ITX

Processor System

  • CPU: Supports Intel Xeon E-2100 Processors (Max. 95W) , Chipset: Intel C246

System Memory

  • Capacity: 2 x DDR4 DIMM slots , Type: Dual Channel memory technology , Voltage: 1.2V

Storage

  • SATA Controller: Intel C246: 1 x OCuLINK (SATA_0,1,2,3); 4 x SATA3 6Gb/s (SATA_4,5,6,7), 1 x SATA DOM included

Ethernet

  • Interface: 1000 /100 /10 Mbps

Management

  • BMC Controller: N/A , IPMI Dedicated GLAN: N/A

Graphics

  • Controller: CPU pGFX

Internal Connector

  • COM Header: 1
  • SATA DOM: 1
  • M.2: 1(2242, PCIE(x4)/SATA3 6Gb/s(SATA 1))
  • OCuLink: 1
  • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED, event log LED)
  • TR1 Header: 1
  • TPM Header: 1
  • IPMB Header: N/A
  • Buzzer: N/A
  • Fan Header: 3(1CPU/1Front/1Rear)
  • ATX Power: 1x (4-pin)
  • DC IN: 1x (8-pin)
  • USB 3.1 (Gen1) Header: 1 (support 2 USB 3.0)
  • USB 2.0 Header: N/A
  • PWR SMB Header: N/A
  • Front Panel: 1 (RST, HDLED, PLED, PERBTN)
  • Serial ATA3 Connector: 3
  • SATA Power Connector: 1x (4-pin)
  • Speaker Header: 1(4pin)
  • Serial Port: 1x (8-pin)
  • SGPIO Header: 2
  • Clear CMOS: 1 (short pad)

In the Box

  • ASRock Rack C246 WSI Motherboard
