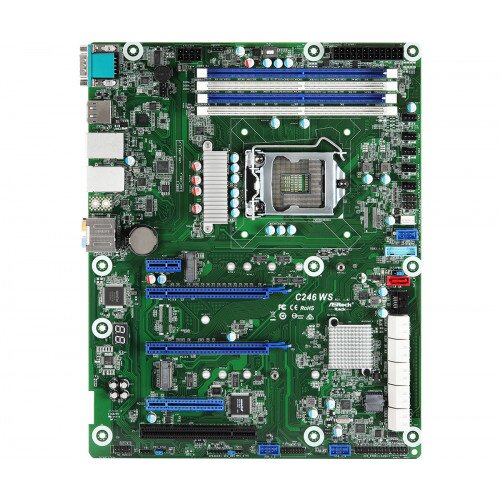

ASRock Rack C246 WS Motherboard
ASRock Rack C246 WS Motherboard Display Gallery Item 1
ASRock Rack C246 WS Motherboard - 2 Display Gallery Item 2
ASRock Rack C246 WS Motherboard - 3 Display Gallery Item 3

ASRock Rack C246 WS Motherboard Price in Pakistan

By: ASRock Rack

Model: C246 WS

Sku: 6QUUHHS6AT

Be the first to review this product

Sign up for price alert

PKR 77,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Supports Intel Xeon E-2100 Series Processors
  • Supports Dual channel DDR4 2133/2666/2400 ECC and non-ECC U DIMM max 64 GB
  • Support 8 x SATA3 by C246 (included 1 SATA DOM), 4 x SATA3 by Marvell 9172
  • Supports 2x PCIe 3.0 x16, 1x PCIe 3.0 x8, 1x PCIe 3.0 x1, 1 xPCI, 3 x M.2
  • Supports Intel i210&i219LM
  • Supposts Audio Jack 5+1, 1x HDMI/ 1x Display port / 1x D-sub/ 1x COM port
Quantity:
  • Add to Wishlist
  • Add to Compare

MB Physical Status

  • Form Factor: ATX

Processor System

  • CPU: Supports Intel Xeon E-2100 Series Processors , Chipset: Intel C246

System Memory

  • Capacity: 4 x 288-pin DDR4 DIMM slots , Type: Dual Channel DDR4 memory technology , Voltage: 1.2V

Storage

  • SATA Controller: Intel C246 : 8 x SATA3 6.0 Gb/s, support RAID 0, 1, 5, 10

Ethernet

  • Interface: 1000 /100 /10 Mbps

Graphics

  • Controller: CPU pGFX

Internal Connector

  • SATA DOM: 1 (shared with M.2)
  • Auxiliary Panel Header: 1 (includes chassis intrusion, front LAN LED)
  • TR1 Header: 1
  • TPM Header: 1
  • Buzzer: 1
  • Fan Header: 6x Fan
  • ATX Power: 1 (24-pin) + 1 (8-pin)
  • USB 3.1 (Gen1) Header: 1 (support 2 x USB 3.0 ports)
  • USB 2.0 Header: 3 (supports 6 x USB 2.0 ports)
  • NMI Header: 1
  • Front Panel: 1 (RST, PWRBTN, HDDLED, PWRLED)
  • Front Audio Panel: 1
  • Speaker Header: 1 (4pin)
  • SGPIO Header: 2
  • Clear CMOS: 1 (short pad)

In the Box

  • ASRock Rack C246 WS Motherboard
