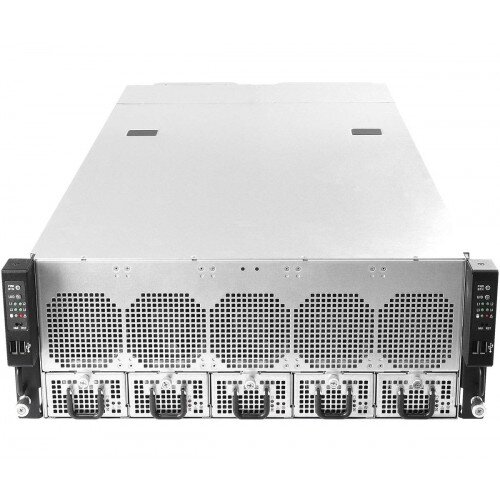

ASRock Rack 4U60L-JBOD Server Price in Pakistan

By: ASRock Rack

Model: 4U60L-JBOD

Sku: ZO6BJUSUBF

Availability: Out of stock New

Availability: Out of stock

  • 4U chassis support 60 x 3.5''/2.5’’ HDD Hot-Swap Bay + 2 x 2.5'' HDD Hot Swap Bay with 3+1 750W Redundant PSU
  • Single socket H3 (LGA 1150) supports Intel Xeon processor E3-1200 v3 series & Haswell i3 processors
  • Supports DDR3 1600/1333, max 32GB of each board
  • Supports 60 x 3.5'' and 4x 2.5'' Hot Swap Bay
  • Supports Intel Dual GLAN and additional Mezzanine card to support 10G Ethernet (additional part)
  • 750W Platinum Power supply x 4 (3+1)
Stock Request Notify When Available

System

  • Form Factor: 4U Rackmount ,Chassis Model: 4U60L ,Support MB: Half, 13''x5.96" (E3C224D4HM-8R x 1)

External Drive Bay

  • Front Side Drive Bay: 2 Bay 3.5'' SATA HDD (6Gb/s)

Power Supply

  • Output Watts: 750W Redundant

System Fan

  • Front: 80 x 38 mm x 5 , Middle: 92 x 38 mm x 4

MB Physical Status

  • Form Factor: Half Width

Processor System

  • CPU: Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core i3/Pentium /Celeron Processors (Socket 1150) , Chipset: intel C224

System Memory

  • Capacity: 4 x 240-pin DDR3 DIMM slots ,Type: Dual Channel DDR3 memory technology

Ethernet

  • Interface: Gigabit LAN 10/100/1000 Mb/s

Management

  • BMC Controller: ASASPEED AST2300 , IPMI Dedicated GLAN: 1 x Realtek RTL8211E for dedicated management LAN

Graphics

  • Controller: ASPEED AST2300 , VRAM: DDR3 16MB

Internal Connector

  • COM Header: 1 (COM1) , Front Lan LED Connector: 1 , Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED) , IPMB Header: 1 , Buzzer: 1 , Fan Header: 5 x 4-pin , ATX Power: 1 (24-pin)+1 (8-pin) , USB 3.1 (Gen1) Header: 1 (each support 2 USB 3.0) , USB 2.0 Header: 1 (each support 2 USB 2.0) , Type A USB 2.0 Port: 1 , NMI Button: 1 , Speaker Header: 1 , Dr. Debug with LED: 1

Support OS

  • OS: Microsoft Windows / Server 2008 R2 (64 bit) / Server 2012 (64 bit) / Server 2012 R2 (64 bit)

In the Box

  • ASRock Rack 4U60L-JBOD Server
