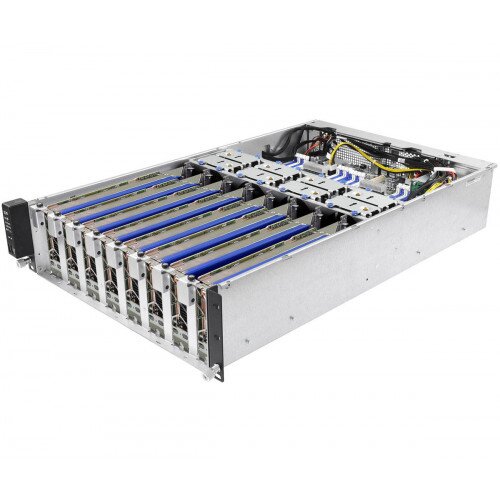

ASRock Rack 3U8G-C612/V Server Price in Pakistan

By: ASRock Rack

Model: 3U8G-C612/V

Sku: YE1RCA0CND

Availability: Out of stock New

Availability: Out of stock

  • 3U Rackmount with 1200W Platinum Redundant PSU (3+1)
  • Dual Socket LGA 2011 R3
  • Supports 2400/2133/1866/1600 16 x DIMM, max 512GB
  • Supports 8x GPGPU/MIC card (Intel Xeon Phi card)
  • Supports additional half-length & low-profile add-on card by riser card
  • Supports 6 x SATA3 6.0 Gb/s (Hot Swap Bay)
Stock Request Notify When Available

System

  • Form Factor: 3U Rackmount ,Chassis Model: 3U8G ,Support MB: CEB, 12''x10.5"(EP2C612D16FM)

Front Panel

  • Buttons: Power On/Standby button , ID button ,System reset button , NMI button

External Drive Bay

  • Front Side Drive Bay: 6 Bay 2.5'' SATA HDD (6Gb/s)

Power Supply

  • Output Watts: 1000W @ 90Vac~132Vac , 1200W @ 200Vac~264Vac

System Fan

  • Fan: 80 x 38 mm x 8

MB Physical Status

  • Form Factor: SSI CEB

Processor System

  • CPU: Intel Xeon processor E5-2600/4600 v3&v4 series , Socket: Dual Socket LGA 2011 R3 , Chipset: Intel C612

System Memory

  • Capacity: 16 DIMM slots , Type: Quad Channel memory technology

Storage

  • SATA Controller: Intel C612 : 10 x SATA3 6.0 Gb/s (8 from 2 mini SAS connector + 2x SATA3 connector)

Ethernet

  • Interface: 1000 /100 /10 Mbps

Management

  • BMC Controller: ASPEED AST2400

Graphics

  • Controller: ASPEED AST2400, VRAM: DDR3 16MB

Internal Connector

  • Auxiliary Panel Header: 1 (includes chassis intrusion, location button & LED, front LAN LED) , TPM Header: 1 , IPMB Header: 1 , Fan Header: 2x CPU Fan, 6x system Fan (4-pin) , ATX Power: 1 (24-pin) + 2 (8-pin), USB 3.1 (Gen1) Header: 1 (support 2 USB 3.0) , Type A USB 3.1 (Gen1) Port: 1,Front Panel: 1, Mezzanine: 1 (from CPU 1)

In the Box

  • ASRock Rack 3U8G-C612/V Server
