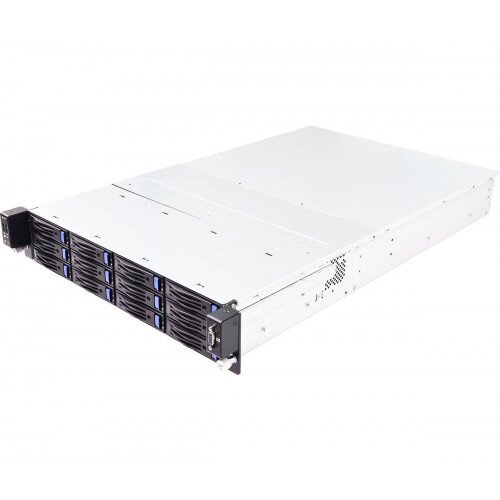

ASRock Rack 2U4FH-12L Server
ASRock Rack 2U4FH-12L Server Display Gallery Item 1
ASRock Rack 2U4FH-12L Server - 2 Display Gallery Item 2
ASRock Rack 2U4FH-12L Server - 3 Display Gallery Item 3
ASRock Rack 2U4FH-12L Server - 4 Display Gallery Item 4

ASRock Rack 2U4FH-12L Server Price in Pakistan

By: ASRock Rack

Model: 2U4FH-12L

Sku: J3VMMKSORG

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • 2U Chassis support 12 x 3.5'' HDD Hot-Swap Bay and 4 Full-Height Card with 750W Redundant PSU
  • Dual Socket LGA 2011 R3 support Intel Xeon processor E5-2600 v3/v4 series
  • Supports 2400/2133/1866/1600 R DIMM, and LR DIMM
  • Support 12 SATA3 (8 from 8087 connector, 4 from SATA ports)
  • 2 x PCIe 3.0 x16, 1 x M.2 slot, 2 x Mezzanine slot.
  • ASPEED 2400. Integrated IPMI 2.0 and KVM with Dedicated LAN
Stock Request Notify When Available

System

  • Form Factor: 2U Rackmount ,Chassis Model: 2U12L ,Support MB: EEB, 12''x13''

Front Panel

  • Buttons: Power Button ,UID Button

External Drive Bay

  • Front Side Drive Bay: 12 Bay 3.5'' SATA HDD (6Gb/s) , Front Side Backplane: backplane with 12 SATA ports

Power Supply

  • Output Watts: 750W Redundant

System Fan

  • Fan: 8038 mm Fan x4

MB Physical Status

  • Form Factor: SSI EEB

Processor System

  • CPU: Intel Xeon processor E5-2600 v3 &v4 series , Socket: Dual Socket LGA 2011 R3 , Chipset: Intel C612

System Memory

  • Capacity: 16 DIMM slots , Type: Quad Channel memory technology

Storage

  • SATA Controller: Intel C612: 10x SATA3, 2 pcs 4 port SFF-8087 CONN (8 ports),

Ethernet

  • Interface: NA

Management

  • BMC Controller: ASPEED AST2400

Graphics

  • Controller: ASPEED AST2400, VRAM: DDR3 16MB

Internal Connector

  • System event LED: 1 x 2pin Header for front system event LED (included in Aux_panel)ME Security Override: 1 x 2 pin header (Flash Descriptor Security Override) (PCH)System configuration: 1 x 3pin header for System Configuration (PCH GPIO connected)SPI connector: 2 support Dual BIOSChassis Intrusion Heade: 1 x 2pin headed, connect to SIO and PCH (included in Aux_panel)Auxiliary Panel Header: 1 (include Locator /LED, LAN LED, System event LED, Case Open)TPM Header: 1IPMB Header: 1 (BMC)PMBus CONN: 1, for BMC I2C bus (BMC)Buzzer: 1Fan Header: 2x CPU Fan, 8x Front system Fan, 1x Rear Fan (4-pin)ATX Power: 1x (24-pin) + 2x (8-pin)USB 3.1 (Gen1) Header: 1 x 19-pin header for 2x USB 3.0 Ports (to front panel), ESD and over-current protectedUSB 2.0 Header: 1 x 9pin header, ESD and over-current protectedType A USB 3.1 (Gen1) Port: 1Front Panel: 1 (include Power button, Reset button, Power LED, HDD activity LED)Front VGA Panel: 1

In the Box

  • ASRock Rack 2U4FH-12L Server
