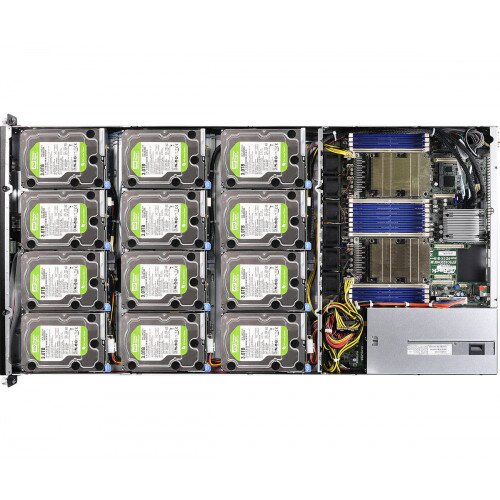

ASRock Rack 1U12XL-C622 RPSU Server Price in Pakistan

By: ASRock Rack

Model: 1U12XL-C622 RPSU

Sku: 6G7XUCLDH3

Availability: Out of stock New

Availability: Out of stock

  • 1U Chassis support 3.5” or 2.5” SATA/SAS HDD/SSD Hot-Swap Bay +2 x 2.5’’ SATA/SAS HDD Hot-Swap Bay with 700W Redundant PSU
  • Intel Xeon processor Scalable family
  • Supports six Channel DDR4 2666/2400/2133 RDIMM/LR DIMM, 16 slots
  • 14 x SATA3 6.0 Gb/s (12 from 3 x mini SAS connector + 2 x SATA connector +2 x M.2 ports from PCH)
  • 2 x USB 3.0 ports
  • ASPEED 2500. Integrated IPMI 2.0 with KVM, vMedia and Dedicated LAN (RTL8211E)
Quantity :

System

  • Form Factor: 1U Rackmount
  • Chassis Model: 1U12L
  • Support MB: EP2C622D16FM (12'' x 10.5'')

Front Panel

  • Buttons: Power On/Off button, UID button, System reset button
  • LEDs: HDD Activity LED

External Drive Bay

  • Front Side Drive Bay: 2 Hot-Swappable Bay for 2.5” 7mm SATA / SAS* HDD

Power Supply

  • Output Watts: 700W, Platinum

System Fan

  • Fan: 40 x 28 mm Fan x6

Processor System

  • CPU: Intel Xeon processor Scalable family
  • Socket: Dual Socket P, LGA3647
  • Chipset: Intel C622

System Memory

  • Capacity: 16 x 288-pin DDR4 DIMM slots
  • Type: Dual Channel DDR4 memory technology

Storage

  • SATA Controller: Intel C622 :14 x SATA3 6.0 Gb/s (12 from 3 x mini SAS connector + 2 x SATA connector +2 x M.2 ports from PCH)

Ethernet

  • Interface: N/A, no MB on board LAN, need to add optional mezzanine LAN card*: M350, M350R,M540, M540R, M599, M599R, M710,

Graphics

  • Controller: ASPEED AST2500
  • VRAM: DDR4L

Internal Connector

  • COM Header: 1
  • SATA DOM: N/A
  • Auxiliary Panel Header: 1 (include chassis intrusion, location button & LED, front LAN LED)
  • TPM Header: 1
  • IPMB Header: 1
  • VGA Header: 1
  • Buzzer: N/A
  • Fan Header: 6 x System Fans (6-pin)
  • ATX Powe: 1x (24-pin) + 2x (8-pin)
  • DC IN: N/A
  • USB 3.1 (Gen1) Header: N/A
  • USB 2.0 Header: N/A
  • Type A USB 3.1 (Gen1) Port: N/A
  • NMI Button: 1
  • Front Panel: 1

In the Box

  • ASRock Rack 1U12XL-C622 RPSU Server
