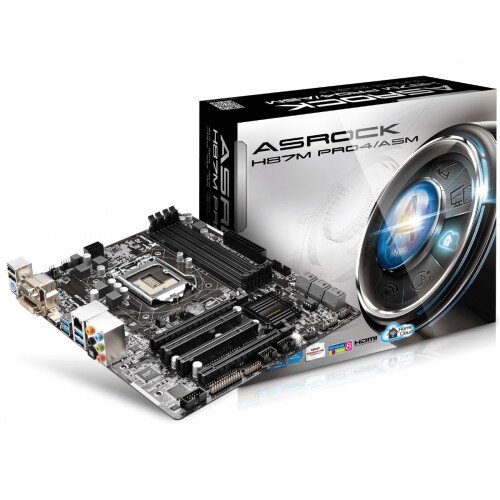

ASRock H87M Pro4/ASM Motherboard Price in Pakistan

By: ASRock

Model: H87M Pro4/ASM

Sku: O3DJYNYRD1

Availability: Out of stock New

Availability: Out of stock

  • A-Style : Home Cloud
  • Supports New 4th and 4th Generation Intel Xeon / Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1150)
  • Supports Intel Small Business Advantage 2.0
  • All Solid Capacitor design, Digi Power
  • Supports Dual Channel DDR3/DDR3L 1600
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16
  • Supports AMD Quad CrossFireX and CrossFireX
  • Graphics Output Options : DVI-D, D-Sub, HDMI
  • Intel Gigabit LAN
  • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • 6 SATA3, 6 USB 3.1 Gen1, 6 USB 2.0
  • Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
Stock Request Notify When Available

CPU

Supports New 4th and 4th Generation Intel Xeon / Core i7 / i5 / i3 / Pentium / Celeron Processors (Socket 1150) Digi Power Design 4 Power Phase Design

Chipset

Intel H87

Memory

Dual Channel DDR3/DDR3L memory technology 4 x DDR3/DDR3L DIMM slots

Graphics

Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider , Intel HD Graphics 4400/4600

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Connector

IR header / Print Port header / COM Port header / Chassis Intrusion header / TPM header / 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) / 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin) / Power Fan connector (3-pin) / 24 pin ATX power connector / 8 pin 12V power connector / Front panel audio connector / SPDIF Out connector / 2 x USB 2.0 headers (support 4 USB 2.0 ports) / USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

OS

Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

In the Box

  • Asrock H87M Pro4/ASM Motherboard
  • 2 x SATA Data Cables
  • Quick Installation Guide, Support CD, I/O Shield
