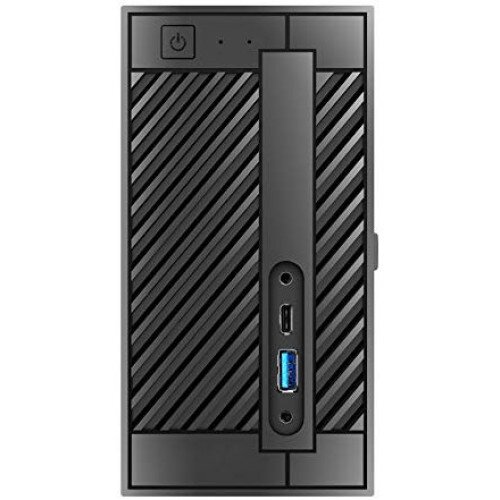

ASRock DeskMini 110 Mini-PC Barebone Price in Pakistan

By: ASRock

Model: DeskMini 110 Barebone

Sku: 2456OGIE51

Availability: Out of stock New

Availability: Out of stock

  • Chassis: 1.92L (155 x 155 x 80mm)
  • Motherboard: ASRock H110M-STX (Mini-STX)
  • CPU: Supports Intel 7th/6th Gen LGA1151 Processors (Max. TDP 65W)
  • Cooler: Supports Intel LGA115x CPU Cooler (Max. Height ≦ 46mm)
  • OS: Microsoft Windows 10 64-bit/ Microsoft Windows 8.1 64-bit/ Microsoft Windows 7 32-bit / 64-bit
  • Memory: Supports 2 x SO-DIMM DDR4-2400MHz, Max. 32GB (non-ECC)
  • Graphics: Integrated Intel UHD Graphics
  • Audio Head Phone with Mic Jack Mic-In
  • Front USB USB 3.1 Gen1 Type-C
  • Storage: M.2_1: Type 2280 PCIe Gen3 x4
  • Connectors: USB 2.0 Header / Front Panel Header / 4-Pin Fan Connector / 5-Pin Fan Connector / DC-In Jack (Supports 19V Power Adapters) / Internal Speaker Header / 2-Pin Chassis Intrusion Header /
  • Power Unit: 120W/19V Adapter
Quantity :

About Mini-STX

The Mini Socket Technology Extended (Mini-STX) form factor adds the flexibility to support Intel LGA 1151 socket-based Intel processors in the mini PC segment.

Smaller Size, Better Performance

Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.

Higher Value, Better Performance

Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.

DC-In Adapter

The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.

Two M.2 Slots

A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.

USB 3.1 Gen1 Type-C

A Type-C USB 3.1 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.

Flexible LAN Choice

Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.

Two SATA3 Headers

There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.

Three Graphics Outputs

This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.

In the Box

  • Asrock DeskMini 110 Mini-PC Barebone
  • 2 x SATA Data with Power Cable
  • Screws Pack
