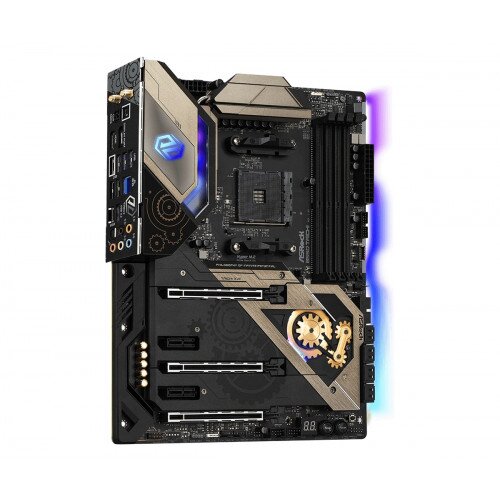

ASRock B550 Taichi AM4 AMD Motherboard Price in Pakistan

By: ASRock

Model: B550 TAICHI

Sku: HF20UT8U70

PKR 72,799

& FREE Standard Delivery

Availability: In Stock In Stock New

  • ASRock USB 3.2 Gen2: ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s), ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s), ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • ASRock Steel Slot Gen4
  • ASRock Full Coverage M.2 Heatsink
  • CPU: Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
  • Chipset: AMD B550
  • Memory: Dual Channel DDR4 Memory Technology, 4 x DDR4 DIMM Slots
  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, 120dB SNR DAC with Differential Amplifier, NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  • Wireless LAN: Intel 802.11ax WiFi Module, Supports IEEE 802.11a/b/g/n/ax
  • Storage: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug, Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
  • Connector: Power LED and Speaker Header, 2 x RGB LED Headers, 2 x Addressable LED Headers, CPU Fan Connector (4-pin), CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), Front Panel Audio Connector (15? Gold Audio Connector), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection), Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection), Dr. Debug with LED, Power Button with LED, Reset Button with LED, Clear CMOS Button
  • OS: Microsoft Windows 10 64-bit
Quantity :

All-STAR TEAM OF CUTTING EDGE FEATURES

Massive Upgrade with AMD B550 & The Revolutionary Networking Connectivity

Unbeatable Heatsink Armor

Forged with aluminum alloy heatsinnk top cover that effectively improves heat dissipation. Underneath its solid strong cover lie two gaming required M.2 Key M sockets for high speed SSDs.

Dual M.2 Sockets for SSD

Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode.

METAL BACKPLATE

Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hi-Density Power Connector

Reduces 23% power loss and decreases the connector's temperature by 22 degrees Celsius.

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

Supports PCIe 4.0 x8/x8 mode

This motherboard supports the world's fastest PCIe Express 4.0 x16 graphics card and an ultimate multiple GPU technology that supports PCIe 4.0 x8/x8 mode. Boost the extreme performance for the games that is Microsoft DirectX 12 or Vulkan ready.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

In the Box

  • ASRock B550 Taichi AM4 AMD Motherboard
  • 4 x SATA Data Cables
  • ASRock WiFi 2.4/5 GHz Antenna
  • ASRock Screwdriver
  • 2 x Screws for M.2 Sockets
  • 2 x Standoffs for M.2 Sockets
  • Quick Installation Guide, Support CD
