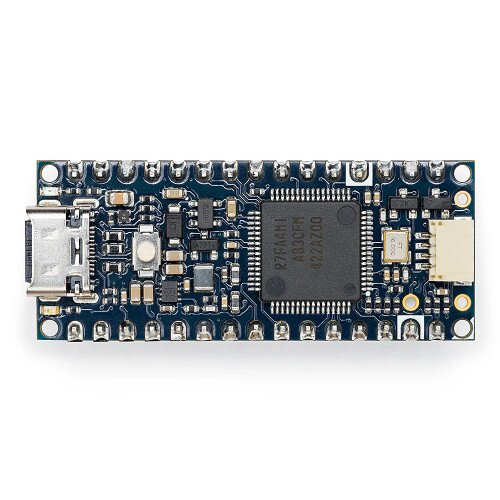

Arduino Nano R4 Board with Headers
Arduino Nano R4 Board with Headers Display Gallery Item 1
Arduino Nano R4 Board with Headers - 2 Display Gallery Item 2
Arduino Nano R4 Board with Headers - 3 Display Gallery Item 3
Arduino Nano R4 Board with Headers - 4 Display Gallery Item 4
Arduino Nano R4 Board with Headers - 5 Display Gallery Item 5

Arduino Nano R4 Board with Headers Price in Pakistan

By: Arduino

Model: ABX00143

Sku: XSLGCFMNL1

Be the first to review this product

Sign up for price alert

PKR 7,899

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Microcontroller: Renesas RA4M1 (Arm Cortex-M4)
  • USB-C: Programming Port
  • Digital I/O Pins: 21 (all the exposed I/O can be used as digital I/O pins)
  • Analog input pins: 8
  • DAC: 1, PWM pins: 6, External interrupts: 2,3
  • Misc: DAC: A0, OpAmp: A1, A2, A3, VRTC: J5
  • Communication: UART: 1, I2C: 2 (5V: A4, A5 / 3.3V: Qwiic, J3, J4), SPI: 1, CAN: 1
  • Power: Circuit operating voltage: +5 VDC, Input voltage (VIN): +6-21 VDC, DC Current per I/O Pin: 8 mA
  • Clock Speed: Main core: 48 MHz
  • Memory (RA4M1): Flash: 256 kB, RAM: 32 kB, EEPROM: 8 kB
Quantity:
  • Add to Wishlist
  • Add to Compare

Nano R4 merges Arduino’s signature ease of use with the powerful Renesas RA4M1 microcontroller and a range of embedded features – the pinout includes CAN, DAC, VRTC and OpAmp! – enabling effortless scaling from prototyping on the UNO R4 to production-ready applications.

With pre-soldered headers, the Nano R4 is ready out of the box for breadboarding, connecting to Modulino nodes, and jumping into experimentation without additional assembly. It maintains the same pinout as other boards in the Nano family and features an on-board Qwiic connector for rapid sensor and peripheral expansion, as well as a programmable RGB LED for intuitive system feedback. Its single-sided component design makes it ideal for space-constrained products, ensuring a seamless transition from classroom or lab testing to real-world deployment.

Thanks to its compatibility with familiar Arduino tools and libraries (including those for the Arduino UNO R4 Minima), the Nano R4 offers students, designers, and developers a streamlined path to build compact, connected, and production-ready solutions.

  • Effortless transition from prototyping to production: Leverage the RA4M1 microcontroller already trusted in the UNO R4 family, with minimal code adjustments needed.
  • Compact, production-ready design: Tiny 4.3 x 1.7 cm footprint, castellated pins, and single-sided components facilitate easy integration into custom hardware.
  • Plug-and-play prototyping: With pre-soldered headers, it’s easy to jump into breadboarding, testing, and connecting external modules like Modulino nodes.
  • Easy expansion: The built-in Qwiic connector and additional 5V I2C port allow seamless connectivity to a wide range of sensors and actuators.
  • Customizable feedback: Use the programmable RGB LED to indicate system states for faster debugging and smarter user interaction.
  • Flexible, familiar platform: Enjoy Arduino’s rich ecosystem, intuitive development environment, and robust community support.

In the Box

  • Arduino Nano R4 Board with Headers
