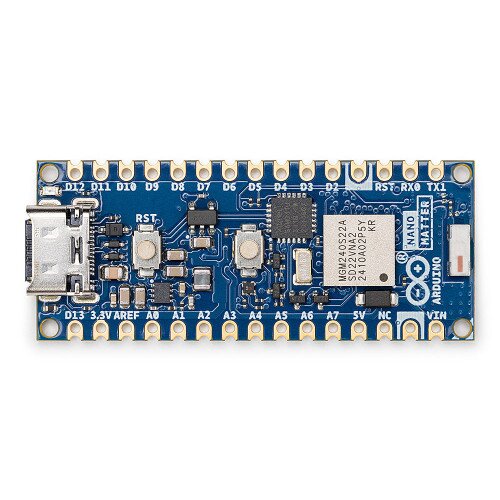

Arduino Nano Matter Board
Arduino Nano Matter Board Display Gallery Item 1
Arduino Nano Matter Board - 2 Display Gallery Item 2
Arduino Nano Matter Board - 3 Display Gallery Item 3
Arduino Nano Matter Board - 4 Display Gallery Item 4
Arduino Nano Matter Board - 5 Display Gallery Item 5
Arduino Nano Matter Board - 6 Display Gallery Item 6

Arduino Nano Matter Board Price in Pakistan

By: Arduino

Model: ABX00112

Sku: XSI5WGACLL

Be the first to review this product

Sign up for price alert

PKR 9,799

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Microprocessor: MGM240SD22VNA (32-bit Arm® Cortex®-M33 with DSP instruction and FPU)
  • Connectivity: 802.15.4 (Thread), Bluetooth Low Energy 5.3, Bluetooth Mesh, Matter-ready Smart Home Connectivity
  • Memory: 1536 kB Flash, 256 kB RAM
  • USB Connector: USB-C
  • Security: Secure Vault High, Debugging: Over USB
  • UART: 2, I2C: 2, SPI: 2, Digital I/O: 22
  • Analog Inputs: 20 (12 bits resolution), DAC: 4 (8-12 bits resolution)
  • PWM pins: 22 (A maximum of 5 pins simultaneously), External interrupts: Available within all Digital pins
  • User Interface: On-board RGB LED, User pushbutton, Circuit operating voltage: 3.3 V, Input Voltage (VIN): 5 V
  • Source Current per I/O Pin: 40 mA, Sink Current per I/O Pin: 28 mA
  • Clock Speed: 78 MHz, Antenna On-board: 2.4 GHz
  • Environmental Temperature: -40 °C to + 85 °C
Quantity:
  • Add to Wishlist
  • Add to Compare

The Arduino Nano Matter stems from a partnership between Arduino and Silicon Labs to make Matter, one of the most popular IoT connectivity standards for smart home devices, accessible to all.

Nano Matter merges Arduino’s signature ease of use with with the powerful Silicon Labs MGM240S, wrapping the best of two worlds into one of the smallest form factors currently on the market. Experimenting with Matter-compatible devices has never been easier!

With Nano Matter, makers – at all levels of expertise – can leverage the popular Matter IoT connectivity standard to build interactive solutions, upgrade previous Nano-based projects to fully function as smart home devices, and even experiment with protocols like Zigbee and OpenThread.

  • Matter-ready for quick prototyping, thanks to hardware support and a user-friendly software layer.
  • Based on the MGM240SD22VNA from Silicon Labs, a 32-bit Arm Cortex-M33.
  • Secure Vault technology: enjoy industry-leading, state-of-the art security from Silicon Labs against escalating IoT threats.
  • Multiprotocol connectivity enables 802.15.4 (Thread) and Bluetooth® Low Energy
  • Nano-family compact size and pinout.
  • Debugging over USB via SWD interface: no external debugging probe needed!
  • Low energy consumption, designed for battery powered IoT devices.

In the Box

  • Arduino Nano Matter Board
