Arduino Mini 05
Arduino Mini 05 Display Gallery Item 1
Arduino Mini 05 - 2 Display Gallery Item 2
Arduino Mini 05 - 3 Display Gallery Item 3
Arduino Mini 05 - 4 Display Gallery Item 4

Arduino Mini 05 Price in Pakistan

By: Arduino

Model: A000087

Sku: 9HD2W2N8FZ

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Input Voltage: 7-9 V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 8 (of which 4 are broken out onto pins)
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32 KB (of which 2 KB used by bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
  • Clock Speed: 16 MHz
Stock Request Notify When Available
  • Add to Wishlist
  • Add to Compare

The Arduino Mini is a very compact version of the Arduino Nano without an on-board USB to Serial connection

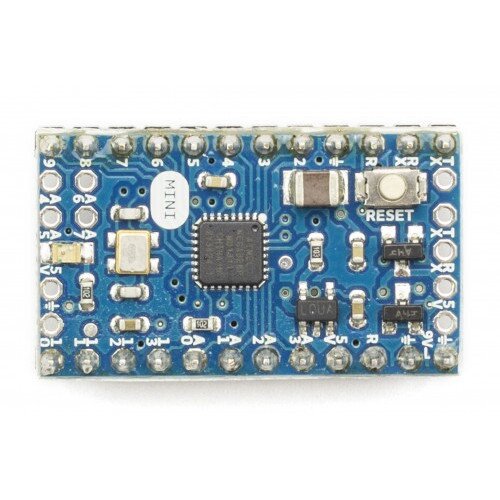

The Arduino Mini 05 is a small microcontroller board originally based on the ATmega168, but now supplied with the 328.(datasheet), intended for use on breadboards and when space is at a premium. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the USB Serial adapter or other USB or RS232 to TTL serial adapter.

The new Mini (revision 05) has a new package for the ATmega328P, which enables all components to be on the top of the board. It also has an onboard reset button. The new version has the same pin configuration as revision 04.

Warning: Don't power the Arduino mini with more than 9 volts, or plug the power in backwards: you'll probably kill it.

In the Box

  • Arduino Mini 05
