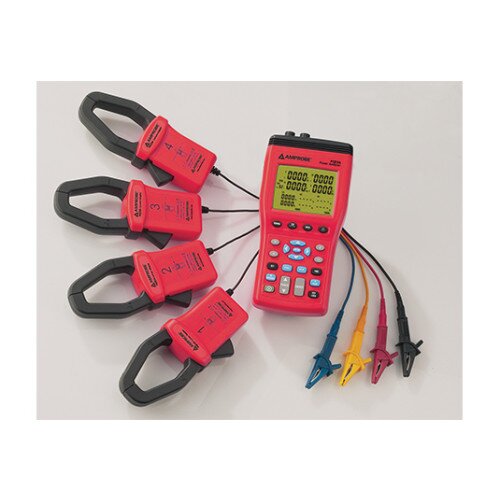

Amprobe PQ55A Compact Power Analyzer
Amprobe PQ55A Compact Power Analyzer Display Gallery Item 1

Amprobe PQ55A Compact Power Analyzer Price in Pakistan

By: Amprobe

Model: PQ55A

Sku: FU7B1PTT6Y

Be the first to review this product

Sign up for price alert

Availability: Out of stock New

Availability: Out of stock

  • Comprehensive real time monitoring, recording and analysis of three phase power systems
  • True-rms voltage and current measurement
  • Power factor and phase angle results
  • Power analysis (apparent, active and reactive power)
  • Additional current clamp for neutral line monitoring
  • Internal memory for 99 single measurement storage
  • Opto-isolated RS232 interface for further analysis and charting
  • 50 Hertz operation facilities
  • Refresh rate: Approx. 2 seconds
  • Backlight: Automatic-power-off after approx. 30 s
  • Data logger: 512 Kb, non-volatile memory
  • Sampling rate (adjustable: 5 seconds, 30 seconds, 1 min, 2 min
  • Data transfer: Via optically isolated RS-232 interface
  • Manual data memory: Max: 99 measurement
  • Power supply: 8 x 1.5V batteries LR6 (Alkaline)
  • Battery life cycle: Typ. 50 h
  • Auto-power-off (can be switched off): After approx. 30 min
  • Internal memory Speicher: 1 x 3 V-Lithium battery CR2032
  • Battery life cycle: Typ. 2400 h
  • Mains adapter: 12 – 15 V/300 mA
  • Electrical supply voltage: 230 VAC (+10 %/-20 %)
  • Frequency range: 42 to 63 Hz
  • Power consumption: Approx. 10 VA
  • Overvoltage class: CAT III 600 V
  • Degree of contamination: 2
  • Protection: II
  • Type of protection: IP 30
Stock Request Notify When Available

A handheld power analyzer for three-phase power system measurements. The Amprobe PQ55 Compact Power Analyzer offers real time monitoring, recording and analysis of three phase power systems.

In the Box

  • Amprobe PQ55A Compact Power Analyzer
  • 4current clamp adapters
  • Test leads with alligator clips
  • RS232 cable and software CD
  • Large soft carrying case with compartments
