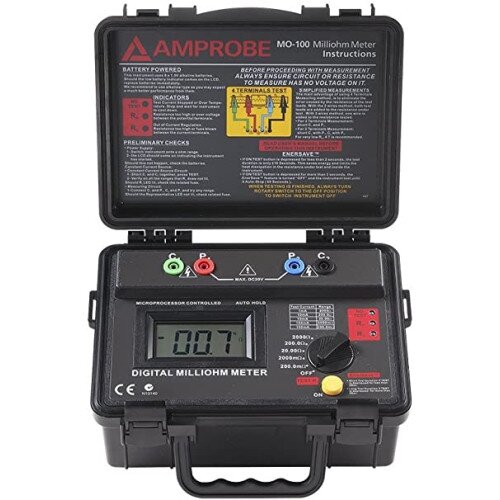

Amprobe MO-100 Milliohm Meter
Amprobe MO-100 Milliohm Meter Display Gallery Item 1
Amprobe MO-100 Milliohm Meter - 2 Display Gallery Item 2
Amprobe MO-100 Milliohm Meter - 3 Display Gallery Item 3

Amprobe MO-100 Milliohm Meter Price in Pakistan

By: Amprobe

Model: 3474954

Sku: U53NM8P0ZI

Be the first to review this product

Sign up for price alert

PKR 258,199

& FREE Standard Delivery

Availability: In Stock In Stock

New

  • Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
  • Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
  • Measurement precision with three test currents with over-temperature protection
  • Protection against inadvertent connection to overvoltage
  • Large LCD
  • Potential lead resistance, current lead resistance checks
  • Auto-hold and auto-off features
  • Lightweight, robust compact.
  • Indicates measurement errors due to temperature or connection problems
  • O-Ring sealed enclosure
  • Battery powered
  • IEC / EN 61010-1
  • Measuring range: 0 → 200.0 mO in steps of 100 µO, 0 → 2000 mO in steps of 1 mO, 0 → 20.00 O in steps of 10 mO, 0 → 200.0 O in steps of 100 mO, 0 → 2000 O in steps of 1 O
  • Test current: 1 mA (2000 O range), 10 mA (20 O / 200 O range), 100 mA (200 mO / 2000 mO range)
  • Measuring ranges: 0-200.0m ohms in steps of 100µohm, 0-2000m ohms in steps of 1m ohm, 0-20.00 ohms in steps of 10m ohm, 0-200.0 ohms in steps of 100m ohm, 0-2000 ohms in steps of 1 ohm
  • Accuracy: ±0.5% of reading ±2 digits over the operating temperature range, -15 °C to 55 °C (5 °F to 131 °F), with the supplied test leads
  • Test current: 1mA =>2000 ohms range, 10mA =>200/ 20 ohms range, 100mA =>2000m / 200m ohm range
  • Test current accuracy: ±0.1%
  • Protection fuses: Mains = 0.5A, HBC, 5 x 20mm, DIN, Current = 0.5A, HBC, 5 x 20mm, DIN, Voltage = 0.5A, HBC, 5 x 20mm, DIN, Maximum output, Voltage (C1-C2) 20V
Quantity:

Diagnose potential failure with the MO-100, portable battery powered milliohm meter. Quickly check windings opens or shorts in motors, generators and transformers, wire-to-wire connection resistances, heating elements testing and contact resistance in critical electrical connections.

In the Box

  • Amprobe MO-100 Milliohm Meter
  • Test Leads
  • Shoulder Belt
  • 8 x 1.5 V (AA) Batteries
